Can a Dishwasher Be Installed Before Countertop? A Practical Guide
Learn whether a dishwasher can be installed before the countertop and how to plan rough-ins, measurements, and secure mounting safely during a kitchen remodel.
Yes. In a kitchen remodel, a dishwasher can be installed before the countertop as part of the rough-in stage. Installers typically connect water supply, drain, and power at the cabinet level, then secure the unit to the base cabinet. The countertop is added later, aligning finish heights and toe-kick clearance.
Why You Might Install Before Countertop
During a kitchen remodel, the dishwasher is often rough-in installed before the countertop goes in. This approach simplifies plumbing, wiring, and alignment with cabinetry. It allows the installer to test clearances and levelness with the actual machine reference while the cabinet system remains accessible. If you’re replacing an old unit in existing cabinetry, coordinating with countertop removal or reinstallation can prevent rework later. While this method works in many scenarios, it requires careful planning to ensure final height matching and trim pieces fit correctly for a clean, professional look. According to Dishwasher Tips, this sequence is common when forward-facing alignment and toe-kick accuracy are priorities in a multi-stage remodel.
Tools & Materials
- Measuring tape(At least 25 ft for spacing and alignment)
- Level(Check vertical and horizontal planes to ensure plumb alignment with the cabinet face)
- Cordless drill with bits(For attaching brackets to cabinetry and toe-kick area)
- Screwdriver set(Phillips and flathead for screws and mounting hardware)
- Adjustable wrench(Use on water supply fittings and clamps)
- Pliers(Grip hoses, clamps, and fittings securely)
- Shims and scrap wood(Leveling support and minor adjustments under the unit)
- Utility knife or tin snips(Trim backing or toe-kick panel if needed)
- Drain hose, water supply line, and fittings(Have extra length for routing and proper slope)
- Electrical tester(Verify outlet and wiring status before connections)
- Safety equipment(Goggles and gloves for protection)
- Spacer/toe-kick block(Optional for alignment with finished toe-kick)
- Sealant or plumber’s putty(For watertight connections at fittings)

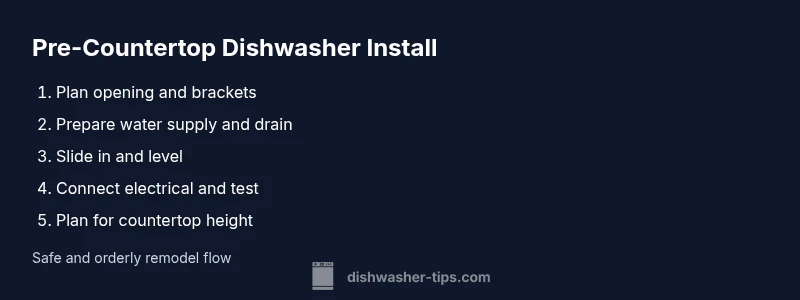

Steps
Estimated time: Total time: 2-4 hours
- 1
Plan placement and mark opening
Identify the dishwasher’s location within the cabinet run and mark the rough opening. Verify there’s enough clearance for door swing and service access, and ensure the opening is plumb and square. This planning saves rework after countertop install.
Tip: Use a square and level to confirm marks align with cabinet faces and toe-kick space. - 2
Shut off water and prepare lines
Turn off the cold water supply at the valve and disconnect current lines if replacing an old dishwasher. Prepare the new supply line and fittings, ensuring you have the correct size for your unit. Leave enough slack for routing without kinking.
Tip: Label supply lines if you’re multitasking with other fixtures to avoid mixing up hot/cold connections. - 3
Remove toe-kick and access panel
Take off the toe-kick panel to access the base cabinet underside. This provides space for securing mounting brackets and routing hoses. Keep screws organized for a faster reassembly.
Tip: Keep screws in a labeled bag so you don’t mix them with cabinet hardware. - 4
Install mounting brackets to cabinet
Attach manufacturer-supplied mounting brackets to the cabinet sides according to the dishwasher’s installation sheet. These brackets will hold the unit securely once slid into place. Double-check alignment with the opening before proceeding.
Tip: Don’t overtighten brackets—leave a little float so the unit can be leveled later. - 5
Slide the dishwasher into opening
With a helper, carefully slide the dishwasher into the rough opening and align with pencil marks. Check that the appliance sits flush with surrounding cabinetry and does not interfere with door operation.
Tip: Shape the hoses and power cable neatly to avoid pinch points during slide-in. - 6
Level and secure the unit
Level the dishwasher front-to-back and side-to-side using shims as needed. Once perfectly level, secure the unit to the cabinet brackets to prevent movement during use.
Tip: Run a quick door-ajar test to ensure the panel doesn’t rub on any adjacent cabinetry. - 7
Connect water supply
Attach the water supply line to the dishwasher inlet and ensure a tight seal. Avoid overtightening to prevent leaks. Turn the valve back on and check for drips.
Tip: Use plumbers tape on threaded fittings to minimize leaks. - 8
Attach drain hose and create loop
Secure the drain hose to the sink or disposal as required, creating a high loop to prevent backflow. If your local code requires an air gap, install it in the route before connecting to the drain.
Tip: Ensure the hose slope is downward toward the drain, not kinked. - 9
Run electrical connection
Connect the dishwasher’s power cord or hardwire per code. In most kitchens, a dedicated 120V circuit with GFCI protection is recommended. If unsure, consult a licensed electrician.
Tip: Avoid routing cables near sharp edges; use grommets or protectors where needed. - 10
Test fit with future countertop height
With the unit temporarily secured, check the rise and plan for final countertop height. Confirm the door clearance and drawer alignment won’t be compromised once the countertop is installed.
Tip: Mark any needed trim or filler pieces for after countertop installation. - 11
Document and label utilities
Record the routing of water, drain, and electrical connections for future reference. Label shut-off valves and outlets to simplify maintenance during the countertop install.
Tip: Photograph connections for your contractor and future DIY reference. - 12
Prepare for countertop install
Leave space and access for the final countertop to seat flush against the cabinet front. Plan for toe-kick height and any trim pieces that will cover seams.
Tip: Communicate with the countertop installer about height tolerances and clip locations.
People Also Ask
Can a built-in dishwasher be installed before countertops in a full remodel?
Yes. In many remodels, the dishwasher is rough-in installed before countertops to simplify plumbing and alignment. This approach requires careful planning for final height and trim after the countertop is installed.
Yes. It’s common in remodels to rough-in a dishwasher before the countertop to ensure plumbing and alignment are correct, then finish with the countertop.
Do I need a professional electrician or plumber for this step?
A licensed professional is often recommended for electrical and plumbing connections to ensure code compliance and a safe setup. If you’re confident, follow local codes and use proper fittings.
It's best to hire a licensed electrician and plumber if you’re unsure about codes and safety.
What if my countertop is delayed or arrives later than planned?
You can still rough-in the dishwasher and secure it to the cabinet while leaving final cosmetic finishes for later. Ensure drain, water, and power lines are safely routed and protected.
You can rough-in now and finish the countertop later, keeping lines protected and accessible.
Is there a risk of damaging the cabinets during installation?
There is a risk if mounting brackets are over-tightened or hoses are pinched. Always follow the manufacturer’s instructions and use protective padding when needed.
Take care with mounting and hose routing to avoid cabinet damage.
Will this affect warranty or energy efficiency?
Rough-in and installation practices that follow manufacturer guidelines typically won’t affect warranty or energy efficiency. Keep documentation of the installation steps and model specifications.
Follow the manual and use the recommended parts to protect warranty and efficiency.
Watch Video
What to Remember
- Plan placement before starting to avoid rework
- Securely mount to cabinet frames, not the countertop
- Ensure proper drainage and high loop to prevent leaks
- Use a dedicated circuit and code-compliant connections
- Coordinate with countertop timing to finish with a clean look
