Dishwasher Air Gap Installation Guide
Learn how to install a dishwasher air gap to prevent backflow and meet code requirements. This comprehensive guide covers tools, mounting options, step-by-step installation, safety tips, and maintenance.
According to Dishwasher Tips, installing a dishwasher air gap ensures backflow prevention and code-compliant drainage. This quick guide outlines the essential tools, mounting options, and a step-by-step process to install the air gap securely, route hoses correctly, and test for leaks. By following these steps, homeowners and renters can complete a safe, compliant installation with minimal disruption.
What is a dishwasher air gap and why you need it
A dishwasher air gap is a small, vented device installed on the sink or countertop that creates a physical break in the dishwasher drain line. Its primary purpose is to prevent contaminated water from siphoning back into the dishwasher and across your potable water supply. This simple feature protects both your appliance and your household plumbing against backflow and cross-contamination. The behavior of the air gap is straightforward: water from the dishwasher passes through the upper chamber, rises as air bubbles escape through the vent, and then exits through the drain hose toward the sink drain. The result is a reliable path that relies on gravity and air pressure, not a single hose bend, to keep backflow at bay. The Dishwasher Tips team emphasizes that even a small air gap can dramatically reduce backflow risk in homes with shared walls and complex drainage systems. Implementing an air gap is especially important in homes with garbage disposals, tall sink basins, or older plumbing where backflow risk is higher. Whether you’re replacing an old unit or installing one for the first time, understanding the purpose of the air gap helps you plan the install with confidence.
How air gaps work: the basics
At its core, an air gap provides a physical barrier between the dishwasher and the sink drain. The dishwasher drain hose connects to the air gap’s lower port, while a second hose runs from the air gap to the sink drain or garbage disposal. When the dishwasher drains, water flows into the air gap and rises as air pressure helps push it out toward the drain, but water cannot travel directly back into the dishwasher because the two paths are separated by air. This configuration ensures backflow cannot contaminate the dishwasher or water supply. The air gap is a passive device—no electricity or motors are involved—and it relies on proper hose routing and secure fittings to remain effective. In many regions, air gaps or equivalent backflow prevention devices are required by code for new installations or when existing plumbing is modified. Following best practices helps you avoid backflow issues and keeps maintenance simple over time.
Code, permits, and safety guidelines
Code requirements for air gaps vary by jurisdiction. Some areas require a dedicated air gap device, while others permit a high-loop backflow prevention method or a similar compliant alternative. Before starting, check your local building department’s guidelines to confirm whether an air gap is required and whether a permit is needed. Safety is equally important: shut off the dishwasher’s circuit at the breaker, turn off the water supply, and ensure you have a clear, dry work area to prevent slips. Use protective gear like gloves and eye protection when cutting or drilling holes. If you rent, obtain permission from the landlord or property manager before any modifications. The code landscape can change, so document your inspection and keep records for future reference. According to industry best practices, adhering to local codes and manufacturer instructions reduces the risk of leaks and future renovations.
Choosing mounting options and kit components
Air gaps come in several mounting configurations: deck-mounted (on the countertop), sink-mounted (through the sink deck), or integrated into a backsplash setup. Each option has a recommended hole size (commonly 1-1/2 inches) and different mounting hardware. When selecting a kit, verify that the gasket, mounting nut, and shims are compatible with your sink material and thickness. Some kits include a cover plate for a clean look, while others require a separate escutcheon. If your sink has a garbage disposal, ensure the air gap outlet hose can reach the disposal’s drain tailpiece without kinking. Always use stainless steel or corrosion-resistant components to handle the humid kitchen environment. The goal is a stable, leak-free installation that remains accessible for maintenance. For best results, diversify hose lengths to avoid abrupt bends and ensure there’s slack for thermal expansion.
Planning the install: pre-checks and layout
Effective planning reduces surprises during installation. Start by measuring the proposed mounting location and confirming the clearance behind the sink or on the countertop. Check that the drain hose length is sufficient to reach the air gap’s bottom port and the sink drain without excessive tension. Prepare a small, clean workspace and lay out all components before you begin. Label hoses and fittings if you’re replacing an old setup, so you don’t mix up ports during assembly. If plumbers’ tape is used on threads, apply it sparingly to avoid contaminating the gasket surfaces. Having a plan for hose routing helps prevent kinks and ensures that the air gap remains accessible for future servicing. Dishwasher Tips recommends taking photos during disassembly to document your initial setup for reference during reassembly or future upgrades.
Common installation challenges and how to avoid them
Hose kinks are a frequent cause of drainage issues after air gap installation. To prevent this, avoid sharp bends and use clamps to secure lines away from cabinet edges. Leaks often stem from improper gasket seating or loose mounting nuts; double-check that the air gap is firmly fastened and the gaskets are fully seated. If you’re replacing an existing air gap, ensure you remove all old fittings and clean the mounting surface to provide a solid seal. In homes with hard water, mineral buildup can affect the integrity of gaskets and fittings over time. Periodic inspection and gentle cleaning prevent buildup that could compromise the seal. If you encounter persistent leaks, recheck both ends of every hose and confirm compatibility with the sink tailpiece and trap assembly. Brand and model compatibility matters—select components that are rated for potable water environments.
Authority sources and maintenance reminders
Maintaining a correctly installed air gap requires acknowledging industry guidelines and keeping up with local codes. The following sources provide foundational guidance on water drainage, backflow prevention, and safe dishwasher installation principles: 1) NFPA and plumbing safety standards, 2) IAPMO/UPC guidelines on air gaps and backflow prevention, and 3) EPA water safety considerations related to household plumbing. Regular visual inspections for cracks, corrosion, and gasket wear extend the life of your air gap and its connections. If you notice any signs of wear or corrosion, replace affected components promptly. Keeping a small maintenance kit on hand—extra clamps, spare gaskets, and replacement hoses—simplifies future service. The Dishwasher Tips team underscores that proactive maintenance reduces risk and helps you stay compliant with evolving plumbing codes.
Maintenance basics and troubleshooting
Routine maintenance keeps your air gap functioning smoothly. Periodically remove the aerator cap and clear any debris that could impede airflow. Inspect the hoses for cracks or stiffness and replace damaged segments promptly. When cleaning, avoid harsh solvents that could degrade rubber seals. If you observe backflow or a damp cabinet, recheck all hose connections and ensure there are no kinks that restrict drainage. If leaks persist after tightening fittings, consider resealing with new gaskets or consulting a licensed plumber for a professional inspection. Keeping a log of maintenance activities helps you anticipate when parts might need replacement and minimizes the risk of unexpected failures.
Final notes on installation and compliance
Air gaps are a quiet but essential feature of safe kitchen plumbing. A correctly installed air gap protects your dishwasher, sink, and water supply from cross-contamination. Always verify that your installation aligns with current local regulations, and keep manufacturer instructions handy for reference. When in doubt, reach out to a licensed professional to confirm code compliance and ensure a safe, durable connection. With careful planning, proper mounting, and diligent testing, your dishwasher air gap will provide long-term protection with minimal maintenance.
Tools & Materials
- Air gap installation kit (including mounting hardware, gasket, and escutcheon)(Ensure kit is compatible with sink thickness and drain sizes)
- Shut-off valves for water supply(Quarter-turn valves recommended for reliability)
- Dishwasher drain hose (sized to kit and sink)(Include extra length for routing with slack)
- Sink tailpiece with proper thread size(Typically 1-1/2 inch; confirm with your sink model)
- Plumber's tape (Teflon) and thread sealant (optional)(Use sparingly on threads only; avoid gasket surfaces)
- Pipe clamps and hose clamps(Stainless steel preferred; include multiple sizes)
- Safety gear(Gloves and eye protection for hand safety)
- Marker and measuring tape(For precise hole placement and layout)

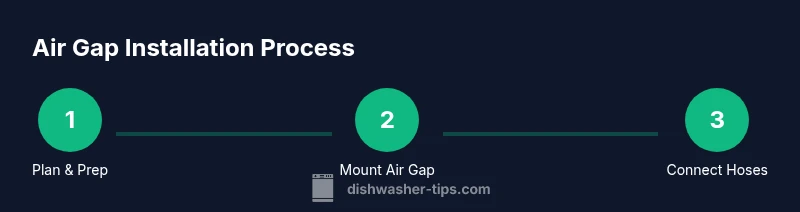

Steps
Estimated time: 60-90 minutes
- 1
Verify local code requirements
Check with your local building department to confirm whether an air gap is required and if a permit is needed. This prevents future code issues and ensures you’re using an approved installation method. Gather all relevant documentation and confirm the mounting method supported by your sink and cabinet layout.
Tip: Consult your local code office early in planning to avoid missteps. - 2
Shut off power and water
Turn off the dishwasher at the circuit breaker and shut off the kitchen water supply. This prevents accidental leaks and makes it safe to work on plumbing connections. Have a towel handy for minor drips and prepare your workspace.
Tip: Double-check that the breaker is off using a tester before touching wiring. - 3
Remove old air gap (if present)
If replacing an existing air gap, disconnect the hoses from the old device and remove any mounting hardware. Clean the mounting surface to ensure a solid seal for the new unit. Inspect hoses for wear and replace any that show cracks.
Tip: Take a photo of the old layout to guide reassembly. - 4
Choose mounting location and hole size
Decide whether you’ll mount the air gap on the deck or through the sink; measure the hole size required by your kit (commonly 1-1/2 inches). Ensure there’s unobstructed access behind the cabinet for hose routing and quick maintenance.
Tip: Pick a location that allows easy access for future cleaning and testing. - 5
Mount the air gap body
Drill or align the mounting hole as required, insert the air gap body, and secure with hardware. Make sure the surface is clean and dry before tightening the nut to prevent leaks. Attach any escutcheon or cover plate if included.
Tip: Hand-tighten first, then snug with a wrench to avoid crushing gaskets. - 6
Connect the dishwasher drain hose to the air gap
Connect the dishwasher drain hose to the bottom port of the air gap and secure with a hose clamp. Route the hose away from sharp edges and heat sources to prevent kinking or damage.
Tip: Use clamps in place at both ends for a secure connection. - 7
Connect the air gap outlet to the sink drain
Attach the air gap’s outlet hose to the sink drain tailpiece or a dedicated waste line. Ensure a clean, gradual route with no tight bends. Clamp the hose securely to prevent movement during dishwasher cycles.
Tip: Avoid routing near disposal blades that could whip or damage the hose. - 8
Test for leaks and finalize
Restore power and water, run a short dishwasher cycle, and inspect all fittings for leaks. Check the air gap cap and escutcheon for rotation or wobble. If leaks appear, tighten clamps and reseat gaskets as needed.
Tip: Test with a full cycle to catch any slow leaks you might miss at first run.
