How to Fit a Dishwasher in Kitchen Cabinets
Step-by-step guide to fit a dishwasher in kitchen cabinets, covering planning, sizing, wiring, plumbing, and finishing touches for a seamless built-in installation.
Goal: Fit a built-in dishwasher into your kitchen cabinetry with safe, code-compliant connections. You’ll verify opening size, select a compatible unit, and make cabinet modifications only where necessary. The plan covers measuring for clearance, preparing the site, securing the appliance, and finishing trims while preserving cabinet integrity.
Planning the Fit: Understanding Space, Standards, and Venting
Before you even unbox the dishwasher, map the space where it will live. A built-in dishwasher typically expects a standard width opening within an adjacent cabinet run, with room for a trim kit and ventilation. Plan for a path from the sink and waste line, and ensure your electrical circuit can handle the extra load without overfusing. According to Dishwasher Tips, start by confirming the cabinet opening matches the dishwasher’s nominal width, height, and depth, then evaluate ventilation needs and clearance behind the unit. Define a CAD-like plan that includes service clearances on both sides, room for door swing, and any required trim pieces. This planning stage saves costly rework later and helps you communicate with a professional if you need one.
Tools, Materials, and Safety Preparations
Collect the essential tools and materials before you begin. A measuring tape, a carpenter’s square, a level, screwdrivers, a drill, a jigsaw, and a silicone sealant are common essentials. Have a bucket and towels ready for any spill, and wear PPE like gloves and safety glasses. Keeping a small waste bin handy simplifies cabinet clearing. Non-essential items like extra bracketry can be set aside. Gather water supply hoses, shutoff valves, and the correct drain hose length. If you’re modifying cabinetry, you may need a handsaw or jigsaw to open the cabinet cavity. Finally, check that the circuit you’ll connect to is de-energized before working on wiring.
Measuring for Fit: Clearance, Height, and Width
Accurate measurements prevent misfits. Start with the opening width, height, and depth; account for any existing trim or toe-kick modifications. Remember the dishwasher’s installation instructions prefer a precise clearance around the sides and top for ventilation and door operation. Use a level to verify the cabinet base is flat; use shims if needed after placing the appliance. Mark reference points on the cabinet interior to guide bracketing and alignment. Make sure there is accessible space for service and for the drain and supply hoses to bend without kinking.
Cabinet Modifications: Cutting and Opening, Seams, and Ventilation
If the cabinet opening isn’t wide enough, you may need to remove or trim cabinet sides, adjust the toe-kick, and enlarge the cutout with a saw or oscillating tool. Keep the cut edges smooth to prevent snagging hoses. Ensure there is an unobstructed vent path behind the unit to prevent heat buildup and moisture issues. Seal any gaps with silicone or foam based on the cabinet material; this reduces drafts and improves finish. Align the unit so the front panel sits flush with adjacent cabinetry.
Electrical, Water, and Drain Connections: Codes and Best Practices
This section emphasizes turning off power, disconnecting the old appliances if replacing, and verifying local codes. For water supply, use the appropriate shutoff valve and supply line; avoid bending hoses sharply. For drainage, install the waste line with a proper air gap or high loop as required by local code. If in doubt, consult a licensed electrician or plumber; working with live circuits or water lines without proper testing can cause injury or property damage. Always test the circuit after hookup with a voltage tester before turning on the appliance.
Positioning and Securing the Dishwasher: Level, Brackets, and Clips
Place the dishwasher in the opening, slide it partially in to check alignment, and adjust the leveling feet to ensure the front edge sits flush with the cabinet face. Secure the appliance to the cabinet sides with manufacturer-recommended brackets or mounting screws to prevent movement during operation. Re-check your electrical and water connections, then finalize by tightening all fasteners and ensuring the toe-kick area remains unobstructed for airflow.
Finishing Touches: Trim, Seals, and Aesthetics
Install a trim kit, ensure the door panel matches adjacent cabinetry, and seal any gaps with paintable silicone. Clean the area, test the door alignment, and adjust as needed. This stage ensures a seamless, built-in look and reduces the chances of water intrusion behind the cabinet. Finally, reinstall the kick plate or toe panel and tidy up the workspace.
Common Pitfalls and How to Avoid Them
Watch for inaccurate opening dimensions, insufficient ventilation, poor leveling, and misrouted hoses. Double-check that the electrical and plumbing connections match local codes and the appliance’s installation guide. Keeping a clean work zone minimizes the risk of damaged cabinet interiors and future service calls.
Post-Install: Testing, Sealing, and Finishing Touches
Run a short cycle to check for leaks, verify drainage, and confirm the dishwasher door aligns with the surrounding cabinetry. Inspect the seal around the front panel and adjust as needed. If you notice moisture behind the unit, reseal and recheck clearances. A final wipe-down ensures a professional, built-in look.
Tools & Materials
- Measuring tape(At least 3 meters; measure width, height, depth)
- Carpenter’s square(For accurate right angles)
- Level(Ensure the base is flat)
- Screwdriver set(Phillips and flat head)
- Drill with bits(For mounting brackets and pilot holes)
- Jigsaw or oscillating tool(To enlarge cabinet cutout)
- Silicone sealant(Waterproof seal around edges)
- Buckets and towels(Contain spills during install)
- PPE (gloves, goggles)(Protect during cutting and wiring)
- Adjustable shims(Fine-tune level after placement)
- Pencil and painter's tape(Mark cut lines and notes)
- Wrench and pliers(Connect hoses and fittings)
- Voltage tester(Verify power is off and test circuits)

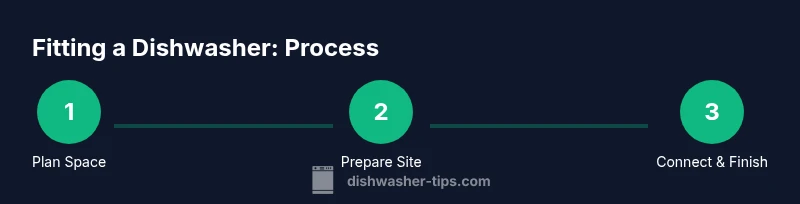

Steps
Estimated time: 3-6 hours
- 1
Plan space and verify opening
Measure the cabinet opening and compare it to the dishwasher’s installed dimensions. Confirm clearance for trim, fan venting, and door swing. Document any deviations to address before moving the appliance.
Tip: Double-check the unit’s electrical and water connections in the chosen model. - 2
Shut off utilities
Turn off the circuit feeding the dishwasher area and close the water supply valve. Confirm there is no pressure in the line before disconnecting old hoses.
Tip: Use a voltage tester to verify no live power remains. - 3
Clear cabinet interior
Remove shelves and contents from the cabinet; clear the internal area so you can maneuver the dishwasher into position without obstruction.
Tip: Keep door working space free of tools and debris. - 4
Enlarge/prepare the cutout
Use a jigsaw to enlarge the cabinet cutout as needed; smooth edges to prevent hose damage.
Tip: Finish with a file or sandpaper for a clean edge. - 5
Insert and align the dishwasher
Slide the unit into the opening enough to level the front edge with the cabinet face. Check alignment on both sides.
Tip: Have a helper to guide and steady the appliance during insertion. - 6
Level and secure
Adjust leveling feet until the front is plumb. Fasten mounting brackets or screws to fix the dishwasher to cabinet sides.
Tip: Verify level after installation; minor tilt can affect door seal. - 7
Connect plumbing and power
Attach the water supply line, drain hose, and confirm proper fittings. Reconnect the power source and verify there are no leaks or loose connections.
Tip: Use anti-kink clips on hoses and avoid overtightening fittings. - 8
Finish with trim and test
Install trim kit and toe-kick, seal gaps with silicone, and run a test cycle to verify operation and leaks.
Tip: Keep a small towel handy for incidental spills during testing.
People Also Ask
What is the most common size for built-in dishwashers and cabinet openings?
Most built-in dishwashers fit a standard 24-inch opening in a compatible cabinet run. Always verify your unit’s exact dimensions and compare them to your opening, including trim for the door and ventilation space.
Most dishwashers fit a standard 24-inch opening. Always check your unit’s exact measurements before cutting.
Can I install a dishwasher myself in existing cabinets?
If you have basic electrical and plumbing experience, you can install a built-in dishwasher in existing cabinets. If you’re unsure about wiring or plumbing codes, hire a licensed professional to ensure safety and UPC/UPC compliance.
DIY is possible if you’re comfortable with electrical and plumbing work. When in doubt, hire a pro.
What safety steps should I take before starting?
Shut off the dedicated circuit, turn off the water supply, and wear protective gear. Verify no power is present with a tester before handling any connections.
Turn off power and water, wear PPE, and test circuits before beginning.
How do I know if the cabinet needs modification?
If the opening is too narrow or lacks ventilation, cabinet sides or toe-kicks may need trimming. Use the dishwasher’s installation guide to determine required clearances.
If you’re short on space or ventilation, you’ll likely need to modify the cabinet.
What should I do if space isn’t standard?
Nonstandard spaces may require selecting a narrower or flexible-width dishwasher or making precise cabinet adjustments, including removing or relocating a shelf or panel. Plan with the appliance’s specs in mind.
Nonstandard spaces may need alternative models or careful cabinet work.
Watch Video
What to Remember
- Measure the opening accurately before cutting.
- Shut off power and water before handling connections.
- Use proper brackets and level to prevent movement.
- Seal gaps to prevent moisture and drafts.
