How to Install a Dishwasher: A Complete Guide
Learn how to install a dishwasher with a clear, safe, step-by-step method. This guide covers electrical, plumbing, drainage, and leveling, plus common pitfalls. Designed for homeowners and renters seeking practical, compliant installation.
This guide shows you how to install a dishwasher from prep to test, including electrical, water, and drainage connections. You'll learn required tools, assess cabinet space, choose wiring method, level the unit, secure it, and run a test cycle. Safety basics included. This article uses neutral, actionable steps suitable for homeowners and renters following local electrical and plumbing codes.
Preparation and safety prerequisites
Before you begin the installation, make sure you have access to a nearby power source, a hot water supply, and a clear cabinet opening. Shut off the home power to the circuit you’ll be using and test that the outlet is de-energized with a voltage tester. According to Dishwasher Tips, meticulous planning reduces rework and minimizes leaks, so take time to read the unit’s manual and map out how the dishwasher will sit in the space. Gather your tools, check local codes, and prepare a clean work area with towels and a bucket ready for any spills. This front-end diligence pays off when you connect water, electricity, and drainage safely and efficiently.
- Safety first: never work on an active electrical circuit or hot water line without turning off power. - Inspect your cabinet opening for square edges and adequate clearance. - Have rags and a bucket ready to catch small leaks during hookups.
Space planning and cabinet fit
Measure the cabinet opening to confirm a standard 24-inch width and the vertical space above and around the machine. Account for door clearance, toe-kick space, and ventilation. If the current opening isn’t perfectly square, plan to shim the unit as needed after installation. A properly sized opening reduces the risk of improper fit, leaks, and vibration. Record your measurements for reference when selecting mounting brackets and trim pieces.
- Check the door swing clearance so the dishwasher door won’t hit nearby cabinetry. - Note the height at which the toe-kick will align with the adjacent floor. - Plan for future maintenance access to hoses and electrical connections.
Electrical readiness: plug-in vs hardwired
Dishwashers can be plug-in or hardwired, depending on local codes and the appliance model. If you’re using a plug-in version, ensure a dedicated outlet within reach of the power cord and a GFCI-protected circuit if required by code. For a hardwired installation, you’ll need to disconnect the power at the breaker, strip wires, and connect to the appliance junction box using approved connectors. Always follow the manufacturer’s wiring diagram and local electrical codes. If you’re unsure about wiring, consult a licensed electrician to avoid shock or fire hazards.
- Ensure the outlet or junction box is accessible after final placement. - Use a voltage tester to verify power is off before wiring. - If your home uses a shared circuit, avoid overloading the line.
Water supply and drain planning
Most dishwashers require a hot water supply line connected via a standard 3/8-inch compression fitting. Shut off the cold water supply and drain any residual water before removing the old connections. Attach a new supply line if needed and check for any signs of corrosion or leaks before connecting. The drain hose should route to the sink drain or disposal with a proper air gap or high loop to prevent backflow. Plan hose lengths that allow slack for installation without kinking.
- Use flexible stainless steel supply lines to reduce kinking. - Confirm the drain path includes an air gap where required by local code. - Ensure the hose clearance provides at least several inches of slack for movement.
Mounting, leveling, and securing the unit
Position the dishwasher so the front panel aligns with neighboring cabinets. Use a level to verify the unit sits plumb and level from side to side and front to back. Install mounting brackets to secure the dishwasher to the cabinet sides if required by the model. A level, stable installation minimizes leaks, dishware tilt, and noise during operation.
- Place shims behind the front legs if the unit isn’t perfectly flush. - Tighten mounting screws gradually to avoid warping the cabinet. - Check that the toe-kick area remains accessible for maintenance.
Connecting water inlet and drain hoses
Attach the water supply line to the dishwasher’s inlet valve, using a wrench to secure fittings without overtightening. Attach the drain hose to the dishwasher drain outlet and secure it to prevent siphoning. Route hoses with gentle bends and avoid any sharp kinks. After connections, gently tug on hoses to verify they’re snug but not strained. This reduces the risk of leaks when you run the first cycle.
- Use Teflon tape on threaded connections to prevent leaks. - Do not overtighten fittings; cross-threading can cause failure. - Secure hoses with clamps or zip ties where recommended by the manufacturer.
Final positioning, power-up, and first test cycle
Carefully slide the dishwasher into the cabinet opening, ensuring the water supply and drain hoses have enough slack. Reconnect the power and run a short test cycle without dishes to check for leaks, noise, and proper operation. Observe the unit for several minutes after the cycle starts to catch slow leaks or misrouted hoses. Once you confirm there are no leaks and the dishwasher fills and drains correctly, load a trial load and run a full cycle.
- Have towels ready to catch any initial leaks during the test. - Listen for unusual noises that could indicate improper mounting. - If you notice leaks, pause, power down, and recheck all fittings.
Common installation mistakes and how to avoid them
Avoid skipping the user manual or ignoring local electrical/plumbing codes. Do not reuse old hoses with worn fittings, and never route hoses through tight gaps or under cabinets where movement could stress connections. Check that the leveling screws are set so the door closes evenly and the unit sits flat. Finally, ensure access to the electrical outlet and service disconnect is unobstructed for future maintenance. Following these guidelines keeps your dishwasher installation safe and reliable.
Post-installation care: maintenance and safety reminders
After successful installation, perform routine maintenance to extend the appliance’s life. Regularly inspect hoses for wear, clean the filter, and scrub seals to prevent mold growth. Keep the area around the unit dry to avoid slips and moisture damage. Document serial numbers and keep installation manuals in a accessible location for future service or parts replacement.
Tools & Materials
- Screwdriver set (Phillips #2)(Flat-head and Phillips heads; bring #2 for most screws)
- Voltage tester(Check for power at outlet or disconnect)
- Measuring tape(For cabinet opening and appliance clearance)
- Adjustable wrench(For water inlet and drain fittings)
- Level(To ensure dishwasher sits perfectly level)
- Caulking or plumbers putty(Seal around base to prevent leaks)
- Bucket and towels(For spills and cleanup during hookup)
- Drill with bits (optional)(Only if mounting requires pilot holes)

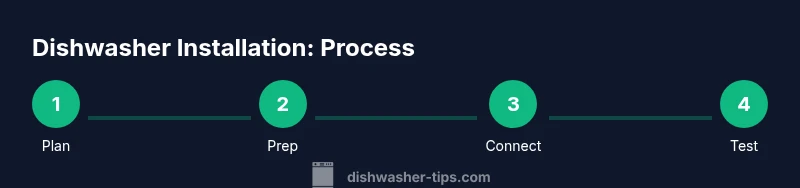

Steps
Estimated time: 60-120 minutes
- 1
Prepare area and review instructions
Clear the workspace, remove objects from the cabinet opening, and read the dishwasher’s installation manual. This step ensures you know the required clearances and any model-specific notes before tools come out. Safety first: confirm the circuit is de-energized and the water supply is shut off.
Tip: Have someone assist you during lifting and positioning to avoid dropping the unit. - 2
Measure opening and confirm clearance
Take precise measurements of the cabinet opening, door swing, and toe-kick height. Compare with the dishwasher’s width, height, and depth specifications. Accurate measurements prevent fit problems later and reduce the need for trimming or rework.
Tip: If the opening isn’t square, plan to shim evenly to avoid rocking. - 3
Turn off power and water supplies
Shut off the kitchen circuit at the breaker and close the hot water valve. Verify there is no electrical current where you will be working. This step reduces risk of electrocution and water-related hazards.
Tip: Double-check power is off with a voltage tester before touching wires. - 4
Prep drainage path and air gap
Decide whether your setup requires an air gap (often required by local codes). Route the drain hose with a high loop or to an air-gap device to prevent backflow. Ensure the path to the sink or disposal is clear of kinks and obstructions.
Tip: Avoid routing the hose behind the dishwasher where it can be crushed by the cabinet. - 5
Connect water supply line to the dishwasher
Attach the hot water supply line to the dishwasher inlet, using the proper fitting. Tighten by hand then snug with an adjustable wrench. Check for leaks by turning the water back on and running a quick fill cycle.
Tip: Use plumber’s tape on threaded connections to prevent leaks. - 6
Attach drains and secure hoses
Connect the drain hose to the unit’s outlet and secure to prevent detachment under pressure. Install any necessary clamps and ensure the hose has a gentle slope toward the sink/dloor disposal. Verify there are no kinks or sharp bends.
Tip: Secure hoses with zip ties or clamps per manufacturer guidance. - 7
Electrical hookup: plug-in or hardwire
If plug-in, ensure a dedicated outlet is reachable and properly grounded. If hardwiring, follow the appliance’s wiring diagram and local codes; consider consulting a licensed electrician for safety. Ensure all connections are insulated and protected.
Tip: Never mix grounding paths or reuse damaged cords. - 8
Position, level, and secure the unit
Slide the dishwasher into place, then level it from front to back and side to side. Secure mounting brackets to the cabinet as required by your model. Re-check level after tightening to prevent door misalignment.
Tip: Lightly press on the front panel to confirm it sits flush with adjacent cabinets. - 9
Run a test cycle and check for leaks
Power the unit, run a short cycle with no dishes to verify water fills and drains correctly. Inspect all connections during and after the cycle for any signs of leakage. If leaks appear, pause the cycle and re-tighten fittings.
Tip: Monitor for the first few minutes; leaks often appear early. - 10
Final adjustments and routine maintenance
If everything operates correctly, load a small amount of dishes and run a full cycle. Clean seals and spray arms as part of regular maintenance. Keep a log of installation details for future service needs.
Tip: Schedule periodic checks of hoses and fittings to catch wear early.
People Also Ask
What space is required for a standard 24-inch dishwasher?
A standard 24-inch dishwasher opening typically requires a 24-inch wide, 24-inch deep opening with about 34 inches of height, plus clearance for ventilation and door swing. Always measure your cabinet opening and compare with the unit’s specs.
Most standard dishwashers fit into a 24-inch wide by 24-inch deep opening with about 34 inches of height; verify measurements against your model before buying.
Can I install a dishwasher without professional help?
Basic plug-in installations and simple hookups may be doable for confident homeowners, but electrical or plumbing work can require a licensed professional per local codes. Always consult the manual and check code requirements.
You can often do the basics yourself, but for wiring or complex plumbing, a pro is safer and may be required by law.
Do I need to disconnect power before starting installation?
Yes. Always shut off the circuit at the breaker and unplug the unit before beginning any connections. This prevents electric shock and damage.
Power off at the breaker and unplug the unit before touching wires or water lines.
What tools do I need for a dishwasher installation?
Common tools include a screwdriver set, adjustable wrench, level, measuring tape, voltage tester, and a bucket with towels. Optional items include a drill for mounting holes and hose clamps as needed.
You’ll need basic hand tools and a level to ensure proper fit and safety.
What should I do if there’s a leak after installation?
First, turn off power and water, then inspect all connections for tightness and wear. Re-tighten fittings and replace any damaged hoses before testing again. If the leak persists, consult a professional.
Shut things down, recheck fittings, and if leaks continue, seek professional help.
Is it necessary to hire a licensed electrician for electrical connections?
If you’re hard-wiring the unit or your local code requires it, a licensed electrician is recommended. For simple plug-in setups, ensure a dedicated outlet is used and GFCI protection if required.
Often necessary for hardwired installs or strict codes; for plug-ins, follow the manufacturer’s guidance.
Watch Video
What to Remember
- Plan space and utilities before starting
- Confirm electrical and plumbing readiness
- Level and secure to prevent leaks and movement
- Test run and inspect for leaks after installation
