Small Dishwasher Under Sink: Practical Installation Guide
Learn how to install and use a small dishwasher under the sink. This guide covers sizing, plumbing, electrical needs, and maintenance for compact kitchens. Practical steps, safety tips, and cost considerations included.
This guide helps you plan, install, and use a small dishwasher under the sink. You'll learn how to choose a compact unit, assess space, connect water and drain lines, and meet electrical and safety requirements. In under-sink setups, careful measuring and proper fittings are essential for leak-free operation. This approach balances space savings with near full-size cleaning performance, making compact kitchens more functional.
Why a small dishwasher under sink is a smart fit
In small kitchens, every inch of space matters. A small dishwasher that fits under the sink can replace a rack of dishwashing and hand-washing time with a compact, efficient cleaning cycle. This approach is especially attractive for renters or homeowners in apartments where full-size dishwashers aren’t practical. The Dishwasher Tips team notes that properly chosen compact units balance capacity with footprint, providing near-full-size cleaning results without dominating your cabinet layout. In addition to saving cabinet space, an under-sink model can simplify plumbing by leveraging existing connections when you plan ahead. When installed correctly, these units deliver consistent performance, lower water usage compared with hand washing, and the convenience of a dedicated rinsing and drying cycle. Finally, think about your daily dish load; even a small unit needs regular maintenance for best results. This is where smart planning and occasional upkeep pay off, ensuring your compact setup stays reliable for years.
Compatibility and sizing: figuring out fit
To ensure a successful under-sink installation, start with precise measurements of the cabinet opening, depth, and height. Consider the door swing, clearance for hoses and wiring, and whether you will need to remove or relocate shelves. Check that the unit’s width fits within the cabinet and that there is adequate space for water connections and back-of-unit ventilation. Drain routing must align with the sink’s drain or disposer, and you should confirm there is an accessible outlet nearby. The goal is to avoid squeeze points, kinks in hoses, or obstructed doors. Remember that some compact models are slightly deeper or taller than others, so planning ahead saves time and prevents last-minute surprises. The Dishwasher Tips team emphasizes confirming all clearances before purchase, especially in shared kitchens or retrofit scenarios.
What types qualify as 'small' under-sink dishwashers
Small dishwashers under the sink come in several varieties. Drawer-style compact units slide out like a filing cabinet and can fit narrow adits with minimal depth. Another option is a countertop model paired with an under-sink installation kit that creates a semi-built-in appearance. Some very compact built-in units are designed specifically for tight spaces under cabinets and offer full washing cycles in a reduced footprint. Each type has trade-offs between footprint, capacity, and installation complexity. When choosing, consider your typical dish load, how often you wash, and whether you prefer a drawer-style mechanism or a traditional front panel. The right choice will feel seamless in your kitchen workflow and still leave room for other cabinet duties.
Key plumbing considerations: supply, drain, and venting
Plumbing is often the trickiest part of under-sink installations. Ensure the cold-water supply line can accommodate a secondary connector, and install a shut-off valve if one isn’t already present. Use the correct sizing fittings to prevent leaks, and apply thread sealant where appropriate. The drain connection should mirror your sink’s tailpiece or be compatible with a disposer setup; in some jurisdictions, an air gap is required by code to prevent backflow. Verify that the cabinet’s back area can accommodate drainage bends without stress. Properly routing hoses to avoid sharp bends reduces the risk of clogs and leaks. A tidy, well-supported drain hose system also helps minimize vibration during operation and prolongs the unit’s life.
Electrical requirements you need to respect
Most small under-sink dishwashers require a dedicated electrical outlet on a GFCI-protected circuit. If a dedicated circuit is not available, you may need to consult an electrician about a safe, code-compliant solution. Avoid using extension cords, and ensure the cord length allows for proper clearance behind the unit. Grounding and strain relief are important to prevent electrical faults. If you have any doubts about wiring, opt for professional assistance. This step protects you and your home while enabling reliable washing cycles without nuisance tripping from an overloaded outlet.
Cabinet preparation and airflow in tight spaces
Prep the cabinet by removing obstacles and ensuring adequate airflow around the unit. Clear any insulation, nails, or packaging that could interfere with doors or panels. Create a small air gap behind the unit if the design requires it, and consider using vented panels to promote circulation. A properly prepared cavity keeps the appliance cooler, minimizes noise, and reduces wear on the cabinet itself. The preparation stage is easier when you lay out hoses and cables in advance and use zip ties to group loose runs neatly.
Drain routing and air gap considerations
Accurate drain routing reduces the chance of water backing up or siphoning. If your local code requires an air gap, install it in the drain line between the unit and the sink. If no air-gap is mandated, ensure the drain hose has a high loop secured to the cabinet frame to prevent backflow. Avoid sharp bends and keep hose length reasonable to prevent kinks or slow drainage. A secure hose clip system will prevent movement during cycles, which can cause leaks or disconnections.
Positioning, securing, and door alignment
Position the dishwasher so the front panel aligns with adjacent cabinetry and the door opens without obstruction. Use mounting brackets or anti-tip supports to keep the unit stable during cycles. Check that the door latch engages smoothly and that there is even spacing around the panel for airflow and aesthetics. A well-aligned unit looks integrated and reduces the chance of rubbing on nearby drawers or doors.
Water-supply connections: valves and hoses
Connect the dishwasher’s water inlet to the dedicated shut-off valve with the correct compression fittings. Ensure that the valve is easily accessible for future maintenance. Use plumber’s tape on thread connections and tighten to a snug fit without over-tightening, which can damage threads. If your kit includes a braided supply line, verify that the length is sufficient to reach the unit without tension.
Electrical connections: grounding and safety checks
Secure the appliance’s power connection according to the manufacturer’s instructions, using a dedicated outlet or proper hard-wiring method as required by code. Verify the outlet is GFCI-protected in kitchens and that there is no moisture near the plug. After wiring, perform a basic safety check: confirm there are no loose wires, and that strain relief is securing the cord to minimize movement.
Testing and adjustments after install
With plumbing and electrical connections complete, run a dry test to inspect for obvious leaks, then run a short wash cycle to confirm proper operation. Check all joints and hoses one more time for moisture and tighten as needed. Listen for unusual noises and monitor the unit during the first cycles to ensure stability and proper drainage. When in doubt, pause and recheck the manual’s guidance on mounting and connections.
Maintenance, cleaning, and efficiency tips
Regular maintenance keeps under-sink dishwashers performing well. Clean filters and spray arms periodically to remove food particles, inspect seals for wear, and run empty cycles with a cleaning agent to prevent buildup. Use the recommended dishwasher detergent and avoid overloading the racks, which can reduce cleaning effectiveness. Energy-efficient operation is aided by proper loading and routine care, which also extends the unit’s life in tight kitchen spaces.
Troubleshooting common issues after installation
If leaks appear, recheck all hose connections and clamps, and verify the drain line is clear of obstructions. If the unit doesn’t start, confirm power at the outlet and that the door switch is functioning. For poor cleaning results, inspect spray arms, filters, and water supply pressure. If noises persist, examine the mounting hardware to ensure the unit is secure and that no loose parts are rattling during operation.
Tools & Materials
- Adjustable wrench(Useful for hose clamps and fittings under the sink)
- Bucket and towels(Contain spills and dry the area during work)
- Plumber’s tape and sealant(Seal threads on water lines and prevent leaks)
- Drain hose and possibly air-gap kit(Connect to sink drain or disposer; air-gap required in some codes)
- Dishwasher supply line kit(Ensure compatibility with your shut-off valve and unit inlet)
- Zip ties and cable clips(Organize hoses and wires neatly)
- Voltage tester or outlet tester(Check electrical outlet safety after installation)

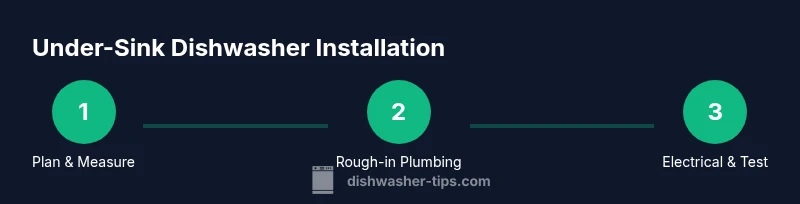

Steps
Estimated time: 90-120 minutes
- 1
Shut off water and power
Locate the main water valve under the sink and turn it to the off position. Unplug the kitchen outlet or switch off the circuit that powers the area. Gather towels and a bucket to catch any incidental drips before you begin.
Tip: Have all tools ready and avoid rushing the shut-off procedure. - 2
Measure space and plan fit
Carefully measure the cabinet opening, depth, and height. Confirm there is clearance for door swing and for hoses and wiring at the back. Compare these measurements with your chosen small dishwasher’s dimensions before purchasing.
Tip: Create a quick layout diagram to visualize hose routing. - 3
Prepare plumbing connections
Inspect the sink tailpiece and disposal area. Decide whether you’ll connect to a dedicated valve or reuse an existing supply. Keep a tray ready to catch drips and organize hardware for quick access.
Tip: Label components to avoid confusion during reassembly. - 4
Install water supply valve and run line
Install a shut-off valve if needed and attach the supply line to the valve. Route the line toward the unit, ensuring no sharp bends. Tighten connections securely without over-tightening.
Tip: Use plumber’s tape on threads and verify there are no leaks after initial tightening. - 5
Position unit and secure in cabinet
Slide the dishwasher into the cabinet space and align front with the cabinet face. Use brackets or supports to prevent movement during operation. Check that no cords or hoses are pinched.
Tip: Leave a small space around the sides for air circulation. - 6
Connect drain hose and air-gap if required
Attach the drain hose to the sink drain or disposal. Install an air-gap if your local code requires it, or ensure a secure high loop to prevent backflow.
Tip: Secure hoses with clips to avoid sagging. - 7
Make electrical connections
Plug into a grounded, GFCI-protected outlet or follow hard-wire instructions per code. Ensure the cord is not in contact with hot surfaces and remains accessible for service.
Tip: If unsure about wiring, consult a licensed electrician. - 8
Run a test cycle and inspect
Power on the unit and run a short wash cycle with the least amount of detergent. Look for leaks, verify drainage, and listen for unusual noises.
Tip: Keep towels ready to catch any unexpected drips. - 9
Finalize and tidy up
Level the unit if necessary and secure any loose cords. Clean the surrounding area and discard packaging. Verify that the door opens and closes smoothly.
Tip: Document any changes for future maintenance.
People Also Ask
Is a small under-sink dishwasher suitable for a small kitchen?
Yes. It is designed for tight spaces and can handle typical dish loads with smaller footprint. Proper installation ensures performance similar to compact full-size units.
Yes, it fits small kitchens and handles normal dish loads when installed correctly.
What electrical requirements are there for under-sink dishwashers?
Most require a dedicated, grounded circuit on a GFCI-protected outlet. Do not share outlets with other high-draw appliances and follow local codes.
Most need a dedicated grounded circuit on a GFCI outlet, per local codes.
Will I need to modify the cabinet or plumbing to fit it?
Some cabinets require shelf removal, panel trimming, or repositioning plumbing to create room for the unit and hoses. Plan these changes before buying.
You may need to adjust shelves or plumbing to fit the cabinet properly.
Can I install this myself, or should I hire a professional?
If you have basic plumbing and electrical skills, you can install it with careful planning. Otherwise, a licensed pro can ensure code compliance and avoid leaks.
If you’re comfortable with basic plumbing and wiring, you can DIY; otherwise hire a pro.
How much water does a small under-sink dishwasher use?
Compact units use less water than hand washing when used regularly, contributing to lower utility bills and greener operation.
They use less water than hand washing over time.
What maintenance is required after installation?
Regularly clean filters and spray arms, inspect hoses for wear, and run a cleaning cycle with a recommended agent to prevent buildup.
Keep filters clean and check hoses; run occasional cleaning cycles.
Watch Video
What to Remember
- Choose a compact model that fits your cabinet space
- Plan plumbing and electrical connections before purchase
- Verify clearances and ventilation in the cabinet
- Secure drain and air-gap per local code
- Test thoroughly after install
