What Happens When the Dishwasher Float Is Not Working? A Quick Troubleshooting Guide
Urgent guide to diagnose and fix a dishwasher float switch that isn’t working, with step-by-step checks, safe fixes, and prevention tips for homeowners and renters.
If your dishwasher float isn't working, the likely cause is a stuck or faulty float switch that prevents proper water level sensing. Start with the simplest checks: unplug the unit, remove the lower rack, and inspect the float for debris. Clean, free the float, and retest. If it still fails, follow the full step-by-step diagnostic and fixes.
What the Float Switch Does and Why It Fails
The float switch is a simple buoy that rises with the water level to tell the dishwasher when to stop filling. If the float cannot rise freely—due to grime, debris, a bent float arm, or a failing switch—the machine may overfill, underfill, or stop mid-cycle. According to Dishwasher Tips, understanding this component is essential for safe repairs. The Dishwasher Tips team found that most float-related issues stem from debris buildup or a mechanically stuck float, not from the control board. A healthy float also helps protect your kitchen from accidental floods, especially in compact or under-sink spaces where access is tight. When the float or its housing is blocked, even a functioning control board can’t correctly modulate the inlet valve, leading to inconsistent fill levels and potential water overflow.
Common Symptoms of a Faulty Float
Common symptoms include: overfilling with water that rises into the door seal, underfilling resulting in poor cleaning performance, the motor running without the proper fill, visible leaks around the bottom of the tub, and faint or intermittent inlet humming when the float is suspect. If you notice any combination of these signs, the float switch is a prime suspect. Remember that other issues—like a clogged filter or a faulty inlet valve—can mimic float problems, so verify the float before replacing other parts. The goal is to avoid unnecessary repairs while ensuring the safety of your appliance.
Diagnosing the Float Switch: Quick Checks
Begin with safety: unplug the dishwasher and pull it away from the wall. Inspect the float assembly at the bottom of the tub or behind the lower kick panel. Look for debris, scale, or mineral buildup that could jam the float. Gently move the float to ensure it rises smoothly and clicks at the top. If there’s resistance, bend or re-seat the float arm if needed. If you have a multimeter, test the float switch for continuity by wiring it as you would in a standard circuit test. A non-responding switch indicates a replacement is likely required. Dishwasher Tips analysis shows that testing continuity is a quicker way to differentiate between a switch fault and a wiring issue.
Prevention and Safety Precautions
Regular cleaning of the float and its housing can prevent most float failures. Use a mild vinegar solution or household cleaner to remove mineral buildup, then rinse thoroughly. Avoid using harsh chemicals that could corrode the float mechanism. Always disconnect power before inspecting electrical components, and never work with the dishwasher plugged in. For homes with hard water, consider a water-softening approach or rinse aid to reduce mineral deposits that can cloud the float and sensor paths. Preventing debris from entering the sump is a simple yet effective habit.
When to Call a Professional
If you’ve cleaned and tested the float but the problem persists, there may be an intermittent electrical fault, a damaged wiring harness, or a failed control board. In these cases, a qualified appliance technician can diagnose the circuit and perform a precise replacement. Don’t risk a recurring flood or an unsafe repair when the fault is likely in the electronics or a fragile float assembly.

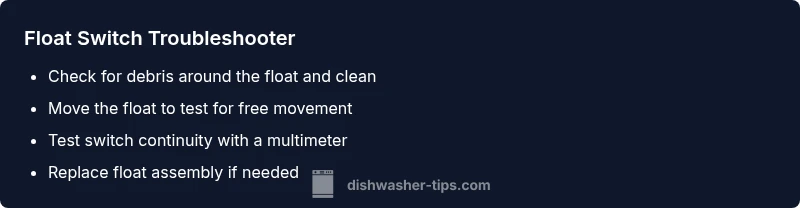

Steps
Estimated time: 20-45 minutes
- 1
Power down and access the float area
Unplug the dishwasher and remove the lower access panel or toe kick to reach the float assembly. This minimizes exposure to hot water and electrical components. Keep a towel handy in case of a minor splash.
Tip: Have flashlights ready; clear the area before you start. - 2
Inspect and clean the float
Carefully remove any debris around the float and its housing. Use a soft brush to dislodge mineral buildup, then rinse with clean water. Ensure the float can rise smoothly without sticking.
Tip: Do not force the float; a gentle, gradual movement indicates a healthy mechanism. - 3
Test float movement
Manually raise and lower the float and listen for the click at the top. If it sticks, adjust the float arm or replace the housing as needed. Confirm the float returns to its resting position without binding.
Tip: Consider recording the motion with a quick video to show a repair pro if needed. - 4
Check electrical continuity
With the unit unplugged, disconnect the float switch harness and test for continuity across the switch terminals using a multimeter. A closed circuit with movement and an open circuit when released indicates a good switch.
Tip: If you’re unsure, stop and call a pro to avoid electric shock. - 5
Reassemble and test
Reconnect the harness, reseal the panel, and run a short test cycle without dishes to observe whether the fill level returns to normal. If the issue recurs, the float switch or assembly likely needs replacement.
Tip: Keep a few towels nearby during the test run. - 6
Assess the need for replacement
If movement is smooth but tests fail or the unit overfills, replace the float switch or entire float assembly. Verify the replacement part matches the model number.
Tip: Make sure to shut off power before removing or installing components.
Diagnosis: Dishwasher won’t fill correctly, overfills, or leaks due to suspected float switch failure
Possible Causes
- highDebris or mineral buildup around the float or float housing
- mediumFaulty float switch or misaligned float arm
- mediumWiring harness connection loose or damaged to the float switch
- lowBlocked pressure tube or vent affecting sensing
- lowControl board fault causing sensor misreadings
Fixes
- easyUnplug the dishwasher and remove debris from the float and housing; re-seat the float for free movement
- mediumTest the float switch for continuity with a multimeter; replace switch if no continuity or inconsistent readings
- mediumVerify wiring connections to the float switch are secure and undamaged; replace damaged harness or connector
- easyInspect the float assembly and seal for cracks; replace the entire float assembly if physical damage is found
- hardIf the control board is suspected, consult a professional for diagnostic and possible module replacement
People Also Ask
What is a dishwasher float switch and how does it work?
The float switch monitors the water level in the dishwasher tub. As water rises, the float lifts and signals the inlet valve to stop filling. If the switch sticks or fails, the machine may overfill, underfill, or not fill at all.
The float switch watches the water level, telling the machine when to stop filling. If it sticks or fails, you can get overfill or no fill.
Why won't my dishwasher fill with water?
No fill can result from a stuck float, a bad inlet valve, or a failed float switch. Start by inspecting the float for obstructions and test the inlet valve with a multimeter if you have one.
If it won’t fill, check the float for obstructions and test the inlet valve and float switch.
What causes a float to get stuck?
Debris, mineral buildup, or a bent float arm can cause the float to stick. A damaged float housing or misalignment can also prevent smooth movement.
Debris or a bent float arm can make the float stick; check for buildup and straighten the arm if needed.
How can I test the float switch at home?
With the power off, access the float switch and test continuity with a multimeter. If you’re unsure how to test it safely, consult a professional.
Turn off power, test continuity with a multimeter, and if unsure, contact a pro.
When should I replace rather than repair the float switch?
If the float switch is physically damaged, repeatedly fails tests, or the float assembly is worn, replacement is usually more reliable than repair.
If the switch is damaged or keeps failing tests, replacing it is best.
Is it safe to operate with a faulty float switch?
No. A faulty float can lead to overflows and water damage. If you suspect a fault, unplug the unit and seek professional help.
No—don’t run it with a suspected float fault; unplug and call a pro.
Watch Video
What to Remember
- Check debris first; it is the most common float issue.
- Test the float switch with a multimeter to confirm fault.
- Replace the float assembly if it’s damaged or stuck.
- Power down and follow safety steps to prevent shocks or leaks.
- When in doubt, call a professional for electronics-related faults.
