How to Attach a Dishwasher to Cabinet

Assessing Your Cabinet and Dishwasher Fit

The question "how is dishwasher attached to cabinet" is common among homeowners planning a kitchen upgrade. The answer depends on whether you are dealing with a built-in, integrated, or freestanding unit, and on the cabinet’s construction. The first step is to verify that the cabinet opening aligns with standard dishwasher dimensions and that there is clear toe-kick access. According to Dishwasher Tips, secure mounting begins with solid support and precise alignment. The team found that most mounting issues stem from misalignment, under-tightened fasteners, or using incompatible brackets for the cabinet frame. Take careful measurements of the opening, note the position of water supply lines and the drain, and map out a mounting plan before handling tools. Understand whether your dishwasher uses deck mounting brackets that anchor to the floor, side brackets that clamp to the cabinet sides, or a top rail that the countertop locks into. Each method has unique clearance and torque requirements that should be respected from the outset.

Tools, Brackets, and Fasteners You’ll Use

Having the right hardware is a prerequisite for a secure installation. You’ll typically need mounting brackets compatible with your cabinet type, wood screws sized for your frame (usually #8 or #10, length depends on cabinet depth), a level, a drill with appropriate bits, a screwdriver (Phillips and flat), a socket or wrench for the unit’s mounting screws, and weatherproof sealant or caulk near the toe-kick area. Don’t forget a tape measure, painter’s tape to protect surfaces, and a helper to lift the machine during positioning. If your model includes anti-tip brackets or rails, include those as well. The correct hardware ensures robust mounting and reduces the risk of movement or leaks over time.

Planning the Layout: Measuring for Success

Accurate measurements prevent costly mistakes. Start by confirming the cabinet opening is square and 24 inches wide, with enough depth to accommodate the dishwasher’s front and toe-kick. Check the cabinet depth behind the face frame and ensure there is clearance for water supply lines, drain hoses, and electrical conduits. Mark the final resting position of the dishwasher, ensuring the front face aligns with adjacent cabinetry. Plan for access to service panels and the ability to slide the unit out for maintenance without removing structural elements. If replacing an old dishwasher, compare mounting hole locations with the new model and plan to reuse or adapt brackets accordingly. A well-planned layout reduces post-install adjustments.

Understanding Mounting Methods: Deck, Side, and Top Rails

Dishwashers can be attached using several methods, and your choice depends on cabinet construction and the model. Deck mounting brackets secure the unit to the cabinet floor, side brackets clamp to the cabinet sides for added rigidity, and top rails anchor to the countertop to prevent forward movement. Each method affects alignment tolerances and cabinet wear differently. Deck mounting is common in standard installations, while top rails are typical in flush or semi-integrated setups. When in doubt, refer to the manufacturer’s installation manual for the exact mounting pattern and torque specifications. A misaligned rail can cause door binding or the unit to tilt, so take time to locate the correct anchors before tightening anything.

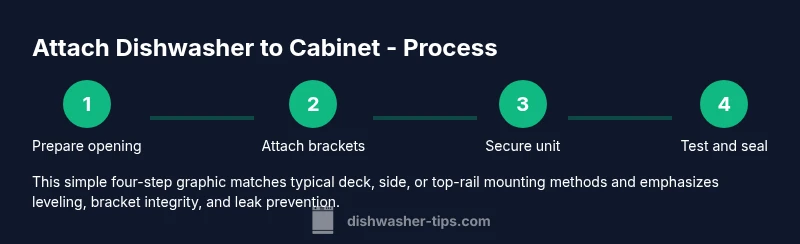

Step-by-Step Attachment Overview (High-Level)

This section provides a high-level overview to complement the detailed steps that follow. Begin with clearing the workspace and disconnecting power, water, and drain lines. Install any required mounting brackets to the cabinet frame according to the model’s instructions. With a helper, slide the dishwasher into place and align it so the front is flush with the cabinet face. Secure the brackets to the cabinet or the countertop rail, ensuring even contact and avoiding overtightening. Finally, reconnect water and drain lines, test the unit for leaks, and verify the door opens and closes smoothly. The goal is a stable, level installation with clean, leak-free connections.

Water Supply, Drain, and Sealing Considerations

Water supply and drainage are as critical as the mounting itself. Use a dedicated hot or cold supply line as specified by the manufacturer, usually with a shutoff valve within easy reach. The drain hose should connect to the sink’s drain or air gap with a proper loop to prevent backflow. Seal the toe-kick area with a suitable gasket or caulk to prevent dust and moisture intrusion. Ensure there is enough slack in hoses to allow movement during service while avoiding kinks. If you notice any signs of moisture or staining around the mounting area after installation, recheck fittings and seals promptly. Proper sealing protects cabinets and floors from water damage and prolongs appliance life.

Leveling, Door Alignment, and Final Fastening

A dishwasher that isn’t level can bind doors, cause leaks, and reduce performance. Use a level to check both the front-to-back and side-to-side axis, adjusting leveling feet as needed. Confirm that the door latch aligns with the cabinet frame and that the door closes without rubbing. Tighten mounting screws incrementally, checking alignment as you go to avoid distorting the unit. If you see the door sagging or the unit shifting after a test cycle, re-check the brackets and consider adding shims under the mounting points or toe-kick area. A precise final alignment makes operation smoother and reduces wear on hinges and gaskets.

Post-Install Testing and Safety Checks

After mounting, cautiously re-energize the circuit and run a short diagnostic cycle to observe for leaks, unusual noises, or misalignment. Check all connections for tightness—water supply fittings, drain hose connections, and any bracket screws. Inspect the toe-kick area for signs of movement or rubbing between the dishwasher and cabinet. If you notice leaks, immediately power down and re-tighten fittings, then rerun the test. Keep a spray bottle handy to dampen any potential leaks and to locate their source. This final verification helps prevent costlier service calls down the line.

Maintenance and Troubleshooting Post-Install

Even a properly installed dishwasher benefits from periodic checks. Every few months, inspect mounting screws for tightness, examine hoses for cracks or wear, and verify that the door closes cleanly without interference. If you ever hear a thud when the unit runs, stop the cycle and re-check alignment and anti-tip brackets. For persistent leaks or shifting, consult the manufacturer’s installation guide and consider professional support if you’re unsure about electrical or plumbing connections. Regular checks help ensure long-term reliability and safety.

Quick Reference Checklist for DIY Install

• Verify cabinet opening dimensions and clearance
• Gather all mounting brackets and hardware
• Disconnect power and water before starting
• Position dishwasher and align flush with cabinet face
• Secure mounting brackets per model instructions
• Reconnect water and drain lines with proper seals
• Check level and door clearance; adjust as needed
• Run a test cycle and inspect for leaks
