How to Fit a Dishwasher Under Sink: Step-by-Step Guide
A practical, safety-focused guide to fitting a dishwasher under a kitchen sink. Learn space planning, utility connections, and installation tips for homeowners and renters.
This guide shows you how to fit a dishwasher under a kitchen sink by planning space, verifying measurements, routing the water supply and drain, and handling electrical access safely. You’ll need a compatible dishwasher size, adjustable legs, flexible hoses, shut-off valves, mounting hardware, and basic tools. Follow these steps to measure, prepare, install, and test the fit.
Planning and Compatibility
When you’re figuring out how to fit a dishwasher under a sink, the first step is planning for clearance, plumbing, and electrical access. According to Dishwasher Tips, most dishwashers are 24 inches wide, with compact models around 18 inches. If you’re relocating an existing unit or choosing a new model, measure the cabinet opening, the door swing clearance, and the depth from the front edge of the cabinet to the back wall. Make sure there’s at least a few inches of free space behind the unit for venting, hoses, and airflow. Consider whether the sink’s plumbing and the disposal branch can accommodate hot water supply and a drainage path. The goal is to avoid forcing the unit into a cramped space, which can cause leaks, failed seals, and insufficient drainage. In this phase, verify that your chosen model will physically fit and that there is a nearby, accessible electrical outlet that meets local code. This is a common bottleneck, especially in smaller kitchens, so plan accordingly and keep the install safe and compliant.
Assessing Cabinet Space and Configuration
Next, confirm the cabinet interior height, width, and depth to ensure the dishwasher can slide in without removing the door frame or trimming cabinetry. If the sink base shares a wall with the dishwasher footprint, you may need to relocate or re-route small piping, such as the supply shut-off valve or the drain trap. Map out the route for the drain hose, ensuring it rises to an air gap or high loop above the flood level rim if required by code. If your kitchen uses a garbage disposal, check whether the disposal outlet and inlet fittings will align with the dishwasher drain hose. Remember: an under-sink fit is easiest when you choose a model that aligns with standard cabinet dimensions, but you can still fit a compact unit by adjusting or removing an adjacent shelf or panel, if permitted by your cabinet’s construction.
Tools and Materials You’ll Need
Before you start, gather the essential tools and materials so you don’t pause mid-task. You’ll need to work carefully in a confined space, so having the right items within reach saves time and reduces mistakes. A few common necessities include a tape measure for exact dimensions, flashlight or headlamp for visibility, a Phillips and flathead screwdriver, a wrench, pliers, adjustable pliers, and a utility knife. You’ll also want a bucket and towels for minor leaks, plumber’s tape, and spare piping hardware. For connections, have a flexible water supply hose, a braided drain hose, a sink drain kit or air gap if required, and a drill with appropriate bits if you need to create clearance. If you need electrical work or a dedicated outlet, plan to hire a licensed electrician—extension cords are not allowed in most installations. This stage lays the groundwork for a clean, safe fit that avoids water damage and electrical hazards.
Step-by-Step Guide: Prepare, Move, and Secure
With planning complete, you can start the hands-on portion of the fit. First, clear the area under the sink and protect the floor. Remove any shelves or drawers that obstruct the dishwasher’s path and verify the cabinet interior height is sufficient for the unit’s height plus the legs. Second, remove the existing drain trap or adjust it if needed; you’ll connect the dishwasher drain to this path via a hose with a proper clamp or an air-gap device. Third, disconnect the hot water supply at the shut-off valve and drain the line to prevent spills. Keep a bucket handy for residual water. Fourth, with the dishwasher temporarily positioned, adjust its leveling legs so the front edge sits perfectly level and the door seals cleanly when closed. Fifth, slide the unit into place, minding the hoses and power cord. If you must remove a portion of the cabinet wall or kick panel, do so carefully and re-secure after installation. Sixth, secure the dishwasher using the included mounting brackets to prevent movement during cycles. Finally, reconnect water supply, drain, and electrical connections following the manufacturer’s instructions and applicable electrical codes.
Step-by-Step Guide: Connect, Seal, and Test
After the unit is in position, connect the water supply hose to the shut-off valve using a compression nut, ensuring a tight seal without over-tightening. Attach the drain hose to the dishwasher’s drain port and route it to the sink drain or air gap device. If your area requires an air gap, install it per local code and ensure the drain hose maintains a high loop above the flood level rim. Check the power supply—do not use an extension cord; plug the unit into a dedicated GFCI-protected outlet at or above countertop level. Before running a full wash cycle, run a quick test to verify there are no leaks at any connection and that the dishwasher fills, heats, and drains properly. If you notice any leaks, shut down power and water, re-torque fittings, or reposition hoses as needed. Finally, replace the kick panel and reassemble any cabinetry removed for access. After testing, observe the unit for several minutes to ensure no hidden leaks or stray water emerges from seals.
Safety, Compliance, and Final Checks
Fitting a dishwasher under a sink involves both plumbing and electrical considerations. If you’re unsure about local electrical codes or if your cabinet’s structure requires modifications, consult a licensed professional. Always shut off the main water supply before disconnecting any lines and dispose of old parts safely. Keep a fire extinguisher accessible in the kitchen and never leave a live electrical connection exposed during installation. The Dishwasher Tips team emphasizes following manufacturer guidelines and local code requirements to avoid safety hazards and warranty issues. After successful operation, schedule a quick preventive check: inspect hoses for signs of wear, verify that the door seals are intact, and ensure the cabinet remains dry after cycles.
Tools & Materials
- Tape measure(Measure cabinet opening width, depth, and height.)
- Flashlight or headlamp(Improve visibility in the cabinet cavity.)
- Screwdrivers (Phillips and flathead)(Remove panels and secure brackets.)
- Wrench/adjustable pliers(Tighten fittings and clamps.)
- Bucket and towels(Catch and absorb residual water.)
- Plumber’s tape(Seal threaded connections.)
- Flexible water supply hose(New hose for reliable connection.)
- Braided drain hose and clamp(Connect to drain safely.)
- Air gap or high-loop kit(Required by local code in many areas.)
- Power drill and bits (optional)(For modifications if cabinet walls need thinning.)
- Dedicated GFCI outlet or strip(Ensure electrical safety and code compliance.)
- Kitchen electrician contact (optional)(If electrical work is needed.)

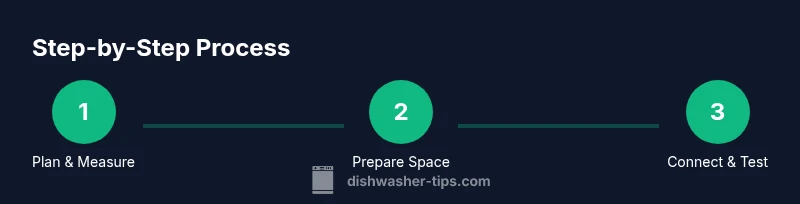

Steps
Estimated time: 90-150 minutes
- 1
Measure and plan
Record cabinet opening dimensions, door clearance, and the unit’s height. Compare to your dishwasher's width and height to confirm fit. Consider future access for maintenance and cleaning.
Tip: Take multiple measurements from different points to account for distortions in cabinetry. - 2
Clear the under-sink space
Remove shelves, pipes, and obstacles. Protect the floor and prep a clear working area for the appliance to slide in.
Tip: Label hoses and keep a photo of current configuration for reference. - 3
Prepare water and drain routes
Shut off the water, detach the old hose, and plan routing for the new supply and drain. Verify that the drain path is uninterrupted and that an air gap or high loop is possible if required.
Tip: Avoid kinks in hoses and ensure a smooth path to prevent leaks. - 4
Position and level the dishwasher
Place the dishwasher in position and adjust the leveling feet so the front edge is perfectly level. A level unit prevents leaks and ensures even door operation.
Tip: Use shims under the feet if the cabinet floor is uneven. - 5
Connect water supply and drain
Attach the supply hose to the shut-off valve and connect the drain hose to the drain or air-gap device. Tighten connections without over-tightening.
Tip: Hand-tighten first, then snug with a wrench—avoid over-tightening that can strip threads. - 6
Secure, test, and finalize
Secure the unit to the cabinet if brackets are included. Restore power to the outlet, run a test cycle, and check for leaks around all connections.
Tip: Let the unit run for a short cycle and inspect for drips before loading dishes.
People Also Ask
Can I fit a full-size dishwasher under a sink without major cabinet changes?
Yes, in many kitchens you can fit a standard 24-inch dishwasher under the sink if there is enough vertical clearance and flexibility in the plumbing. You may need to reposition piping or remove a shelf, but many configurations work with careful planning.
Typically yes, with careful planning; you may need to adjust pipes and shelves.
Do I need to move the sink or cabinets to fit the dishwasher?
Usually not required, but some tight spaces may necessitate minor cabinet modifications. Always check local codes and manufacturer guidelines before cutting or reconfiguring cabinetry.
Usually you won’t need to move major parts, but minor changes might be necessary.
What safety steps are essential when wiring under the sink?
Ensure a dedicated GFCI outlet is used and that wiring follows local codes. Do not use extension cords, and if electrical work is needed, hire a licensed electrician.
Use a dedicated outlet and avoid extension cords; hire an electrician if needed.
What if there’s no nearby outlet for the dishwasher?
If there’s no outlet, you’ll need to install a new dedicated outlet or relocate an existing one, per local electrical codes. Do not plug into a nearby lighting circuit.
Install a proper outlet or relocate it; don’t piggyback off a lighting circuit.
How should the drain hose be routed?
Route the drain hose to the sink drain or air gap with a high loop. Avoid sharp bends and ensure the hose is securely clamped to prevent leaks.
Ensure a high loop and secure clamps to avoid leaks.
What maintenance should I perform after installation?
Inspect hoses for signs of wear, test cycles for proper draining, and keep the cabinet dry. Clean lint and debris from filters regularly.
Check hoses, test cycles, and keep the area dry.
Can I install a dishwasher under any sink configuration?
Not every sink cabinet can accommodate a dishwasher. Always measure and compare with the appliance’s dimensions; if space is unusually tight, consider a compact model.
Not every sink will fit; measure and consider compact models if needed.
Watch Video
What to Remember
- Plan space and verify fit before purchase.
- Shut off utilities and prepare the cabinet interior.
- Follow local codes for drainage and electrical connections.
- Level and secure the dishwasher for optimal performance.
- Test for leaks and safety before using the appliance.
