How to Lower a Dishwasher: Step-by-Step Height Variation Guide
Learn how to safely lower a dishwasher with leveling feet and toe-kick access. This step-by-step guide covers planning, tools, measurements, and post-adjustment checks to ensure a level installation and proper drainage.
According to Dishwasher Tips, you can lower a dishwasher by adjusting its leveling feet, removing the toe kick panel, and possibly trimming the cabinet spacer. You'll need a level, a screwdriver or socket wrench, and shims. This guide walks through safe height adjustment to ensure even alignment and proper drainage. Follow steps carefully and recheck with a tape measure.
Why Height Matters for Dishwashers
A dishwasher that sits at an improper height can cause a variety of problems, including poor drainage, leaks, and door misalignment. When the unit is too high, the door may not seal properly, or it could rub against the countertop; if it sits too low, the toe-kick may scrape the floor and the bottom panel can contact the cabinet. For most standard under-counter installations, precise height ensures water drains toward the pump and the door remains flush with the cabinet front. According to Dishwasher Tips, height and level are foundational for long-term performance and efficiency. Kitchens often feature slightly uneven floors or varying cabinet heights, so taking careful measurements before you touch a screw is essential. Plan for small incremental changes, not big jumps, and verify each adjustment with a level. A properly adjusted height also helps the dishwasher seal correctly, reduce noise, and improve energy efficiency by preventing heat or water from escaping during cycles.
Tools and Materials you'll Need
Before you begin, assemble a compact toolkit and the right materials. Essential tools: a level (torpedo or digital), a screwdriver set (Phillips and flat) or a socket wrench, a tape measure, and an adjustable wrench. You may also need a utility knife or a small handsaw if toe-kick trimming becomes necessary, plus plastic or wood shims to fine-tune height. Optional but helpful items include pliers, a flashlight, and painter’s tape to mark measurements. Keep a bucket handy for any water that escapes while you pull the unit out. Having everything ready reduces trips to the toolbox and minimizes the risk of slips or drops during the lift and slide.
Tools & Materials
- Level (torpedo or digital)(Check both front-to-back and side-to-side accuracy.)
- Screwdriver set (Phillips and flathead)(Use a magnetic screwdriver if available.)
- Socket wrench(For adjusting leveling feet securely.)
- Tape measure(Record initial and target heights precisely.)
- Adjustable wrench(Loosen or tighten feet locknuts as needed.)
- Shim material (plastic/wood)(For minor height corrections.)
- Utility knife or small saw(Only if toe-kick trimming is required.)
- Pliers and work gloves(Safety and grip during handling.)

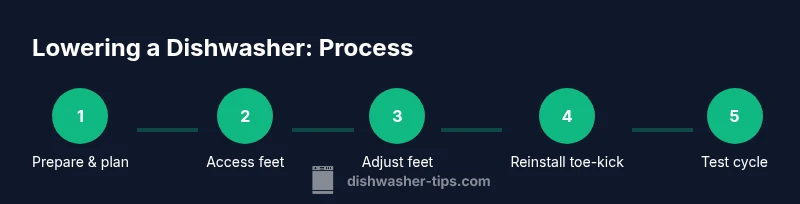

Steps
Estimated time: 60-90 minutes
- 1
Power down and prep the area
Unplug the dishwasher and shut off the water supply. Move the appliance gently away from the cabinet to gain access to the toe-kick and leveling feet. Have a helper nearby to avoid tipping the unit, and prepare towels in case of a small leak. This step minimizes electrical and water hazards before you touch any components.
Tip: Ask a helper to guide the unit while you pull it out a few inches to reach the feet. - 2
Remove the toe-kick panel to access feet
Remove the screws securing the toe-kick plate so you can view the leveling feet. If needed, gently pry the panel without bending its mounting clips. This access point is essential to adjust the feet without removing the entire appliance. Keep screws in a magnetized tray for easy reassembly.
Tip: Take a quick photo of the original shoe placement to guide reinstallation. - 3
Check current height and determine target height
Place a level on the top edge of the dishwasher and note any tilt. Measure the distance from the floor to the bottom of the cabinet and compare with the dishwasher’s current height. Decide how much you need to lower (typically small increments) to achieve an even seal and proper clearance for the toe-kick.
Tip: Plan increments like 1/4 inch at a time, then re-check level after each adjustment. - 4
Lower the front feet to achieve target height
With the unit supported, rotate the leveling feet downward to lower the front of the dishwasher. Use the socket wrench or adjustable wrench to turn the feet in small increments. Recheck height with the level after each turn and avoid over-lowering, which can tilt the unit backward or forward.
Tip: Turn feet in small increments and re-check before moving on. - 5
Reinstall toe-kick and secure connections
Reattach the toe-kick plate and tighten screws securely. Make sure the cabinet-facing edge is flush. If you had to adjust any water or drain connections during the process, ensure they are snug and not kinked. A secure toe-kick helps protect the feet and maintains a clean appearance.
Tip: Check for any gaps around the toe-kick that could trap moisture. - 6
Re-verify level and clearance
Place the level again on the top and front of the unit to confirm a true level in both directions. Confirm there is a consistent gap between the door and cabinet. Confirm the drain hose has a gentle slope and isn’t crushed by the cabinet or toe-kick.
Tip: Make a final pass with a tape measure to confirm total height aligns with your target. - 7
Test operation and observe for leaks
Plug the unit back in and run a short wash cycle without dishes. Watch for leaks around the base and validate that drainage works without backflow. Listen for unusual noises that might indicate misalignment or a loose connection.
Tip: If you hear leaks, stop the cycle and re-inspect hoses and clamps.
People Also Ask
Is it safe to lower a dishwasher myself?
Yes, it’s safe when you disconnect power and water, use proper tools, and work slowly. If you encounter plumbing issues, leaky connections, or structural damage, stop and consult a professional.
Yes—safety comes first. If you run into leaks or hard-to-access parts, call a pro.
What height should I aim for after lowering?
Aim for a level, flush door with the cabinet with a small clearance (about 1/8 to 1/4 inch) to allow drainage and air flow.
Aim for a level front and small gap to the cabinet.
Can I lower without removing the toe-kick?
Most models require toe-kick access to adjust leveling feet. Some may allow access from the sides, but toe-kick removal is common.
Usually you need access behind the toe-kick.
How long does this process take?
Most homeowners complete it in 30–60 minutes, depending on cabinet access and floor condition.
Typically under an hour, maybe a little longer if trim is involved.
What if the floor is uneven after lowering?
Use shims to compensate and recheck level. Avoid large height changes that destabilize the unit.
Shims help balance the unit; recheck level after adjustments.
Will lowering affect warranty?
Warranty rules vary by brand. Check your manual or contact the manufacturer, as some installations require professional service for coverage.
Check the warranty terms before DIY to avoid voiding coverage.
What should I do if drainage is sluggish after lowering?
Inspect the drain hose for kinks, ensure proper slope, and verify clamps are tight. Run a test cycle to confirm improvement.
Check hose slope and clamps, then test again to confirm.
Watch Video
What to Remember
- Lower the dishwasher in small increments for safety
- Ensure a true level on two axes before finalizing
- Check drainage hose for proper slope and clearance
- Reattach toe-kick to protect edges and maintain full seal
- Test with a short cycle to confirm no leaks and proper operation
- Dishwasher Tips recommends careful planning and gradual adjustment
