How to Wire a Dishwasher Safely and Correctly
Learn how to wire a dishwasher safely with our comprehensive, code-aware guide. Covers plug-in vs hard-wired configurations, required tools, safety practices, and testing for homeowners and renters.
To wire a dishwasher, connect a 120V supply via a plug-in cord or a hard-wired junction box, following local codes. Begin by turning off power at the panel, testing for voltage, and preparing the correct gauge wiring with proper strain relief. If uncertain, hire a licensed electrician for safe, code-compliant results.
Safety first: prerequisites and codes
Before you touch any wires, understand that wiring a dishwasher involves working with live electrical systems and must comply with local electrical codes. The Dishwasher Tips team emphasizes that most installations should either use a properly rated plug-in cord kit or a dedicated hard-wired connection to a compliant junction box. Always shut off power at the circuit breaker before starting, and verify there is no voltage present with a non-contact tester or a multimeter. In many jurisdictions, a GFCI-protected outlet or a GFCI-protected circuit is required for kitchen appliances. If you’re unsure, consult your local authority having jurisdiction (AHJ) and consider hiring a licensed electrician for safety and code compliance. According to Dishwasher Tips analysis, following code reduces fire risk and ensures future serviceability, especially in tight kitchen spaces with limited access to junctions.
Electrical fundamentals for dishwashers
Dishwashers are typically powered by 120V AC supply. The appliance either uses a hard-wired connection to a junction box or a dedicated grounded plug-in cord kit. The color codes commonly encountered are black (hot), white (neutral), and green or bare (ground). Grounding protects you from shock and helps the appliance trip a fault safely. When wiring, ensure conductor insulation is intact, no bare copper is exposed beyond the terminal screws, and that conductors are the correct gauge for the circuit amperage. A proper strain relief is essential to prevent movement that could loosen connections over time. Safety observers emphasize never reuse old conductors or connectors that show signs of damage.
Plug-in vs hard-wired configurations: choose wisely
A plug-in configuration is convenient for service and upgrades but may require a rigid, dedicated outlet and a heavy-duty cord rated for a dishwasher. A hard-wired setup eliminates the plug and uses a junction box inside or behind the cabinet, with a strain-relief clamp protecting the conductors. In either case, ensure the circuit is dedicated to the dishwasher, not shared with high-current devices. If your installation requires recessing a junction box, verify there is adequate clearance and ventilation to avoid overheating. Dishwasher Tips notes that the choice often depends on cabinet depth, accessibility, and local electrical codes.
Planning the installation: wire gauge, grounding, and components
Select wiring that matches the circuit’s amperage and the appliance’s rating. Common residential dishwashers require 14 or 12 AWG conductors on a dedicated 15–20-amp circuit, with a ground conductor and a properly rated strain-relief clamp. If you’re hard-wiring, you’ll need a junction box, appropriate terminal blocks, and a secure, code-compliant cover. For plug-in setups, use a manufacturer-approved cord kit and ensure the outlet is GFCI-protected if required by code. Always verify the path of the wires to avoid sharp edges and ensure adequate slack for service.
Testing and commissioning: what to check before power is restored
With conductors secured, re-check all connections for tightness and correctness. Restore power at the panel and test the circuit with a voltage tester to confirm correct polarity and grounding. If a plug-in cord is used, test the outlet with a cord tester to ensure proper operation and fault protection. Run a brief dishwasher cycle to observe startup, fill, and drain actions. If any abnormal smells, buzzing, or tripping occurs, switch off power immediately and recheck connections. Documentation of the wiring approach should be kept for future service.
Common mistakes and how to avoid them
Common errors include using undersized wires, skipping proper strain relief, reversing hot and neutral, or neglecting grounding. Avoid splicing conductors outside of a junction box, and never connect neutral to ground. Always follow the appliance’s installation manual and local codes. If the kitchen is older, verify that the wiring insulation remains intact and that the conduit or cable routing avoids heat sources and moisture. Dishwasher Tips recommends a cautious, methodical approach and a second pair of eyes when possible.
Maintenance and safety reminders after wiring
Periodically inspect the supply cord, junction box cover, and strain-relief clamps for signs of wear, looseness, or heat. Keep the area around the dishwasher dry and free of clutter to reduce trip hazards and moisture exposure. If you relocate the dishwasher or modify the cabinet, re-check wiring routing and strain relief. Annual checks by a licensed electrician can help catch insulation degradation, loose connections, or mislabeling before they become hazards. Maintaining clear documentation ensures easier service in the future.
Authoritative references and best practices (with sources)
Consult these authoritative sources for further guidance and code references: OSHA.gov for general electrical safety, NIST.gov for standards and measurement practices, and Energy.gov for appliance efficiency and safety considerations. These sources complement the practical steps in this guide and provide context on how safe wiring practices protect occupants and property. Always align with the latest NEC updates and your AHJ’s requirements.
Tools & Materials
- Voltage tester / non-contact tester(Verify absence of voltage before touching wires)
- Multimeter(Check continuity and correct polarity)
- Wire strippers(Remove insulation cleanly without nicking conductors)
- Needle-nose pliers(Grip, twist, and bend conductors as needed)
- Screwdrivers (flat and Phillips)(Secure terminal screws and covers)
- Adjustable wrench(Tighten fittings and clamps without over-torquing)
- Electrical tape and/or heat shrink(Insulate splices and joins)
- Wire nuts / connectors (assorted sizes)(Secure and insulate splices)
- Strain-relief clamp(Protect cables at entry points)
- Junction box(Enclose and protect connections)
- Appropriately rated dishwasher cord or cable(Use manufacturer-approved power cord or proper hard-wiring cable)
- Wire gauge appropriate for circuit (14/2 or 12/2 NM, or equivalent)(Match circuit amperage and appliance rating)
- Safety gloves and eye protection(Protect against sharp edges and accidental sparks)
Steps
Estimated time: 2-3 hours

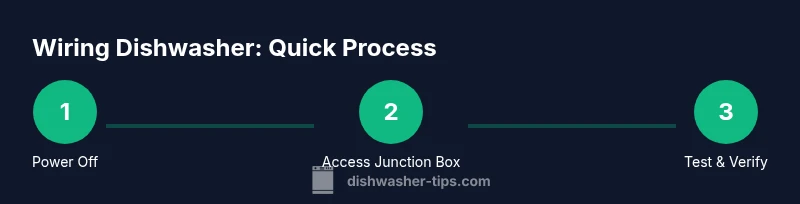

- 1
Shut off power and verify
Go to the main service panel and switch off the dishwasher’s dedicated circuit. Use a non-contact tester or multimeter to confirm there is no voltage at the junction box before touching any conductors. This prevents electric shock and accidental energization during work.
Tip: Double-check both the circuit breaker and any fused disconnects; label the circuit to avoid confusion later. - 2
Access the dishwasher's junction box
Open the access panel or kickplate to reveal the electrical junction box. Remove the cover carefully and locate the incoming feed, which may be a cord or hard-wired conductors. Ensure the cabinet interior is dry and free of moisture or debris that could affect connections.
Tip: If your panel uses a dryer-like cover, avoid prying and use the manufacturer’s screws to avoid damaging insulation. - 3
Identify power configuration
Determine whether the dishwasher is to be wired hard-wired or via a plug-in kit. For hard-wired, plan for a junction box with approved connectors. For plug-in, ensure a dedicated, GFCI-protected outlet is available that matches the cord rating.
Tip: Check the appliance manual for required wire gauge and allowable configurations; mismatched options can void warranties. - 4
Prepare wiring and connectors
Cut and strip wires to appropriate lengths, leaving extra slack for service. Arrange wires so hot, neutral, and ground can reach their respective terminals without tension. Pre-twist strands if using wire nuts and prepare heat-shrink or tape for insulation.
Tip: Use a utility knife with care to avoid nicking conductors; never reuse damaged insulation. - 5
Connect hot, neutral, and ground
Attach the hot (black or red) to the brass terminal, neutral (white) to the silver terminal, and ground (green or bare) to the green ground screw or ground terminal in the junction box. Ensure all connections are secure and properly tightened to prevent arcing.
Tip: Do not mix up hot and neutral; verify terminal color coding matches the appliance’s diagram. - 6
Secure strain relief and enclosure
Install a strain-relief clamp where the cord or cable enters the junction box to prevent pull-out. Replace the cover and ensure there is no movement of the cables. Clean up any debris and verify there are no loose tools in the cabinet.
Tip: Make sure the clamp is rated for the Type and gauge of the cable used. - 7
Test the circuit with power on
Power the circuit back on and use a voltage tester to confirm proper voltage, polarity, and grounding. If installing a plug-in kit, test the outlet with a tester and perform a short test cycle to check for proper operation.
Tip: If you smell burning or see a spark, switch off power immediately and recheck all connections. - 8
Final safety check and cleanup
Inspect all wiring for wear, ensure connections are inside the junction box with a secure cover, and confirm no tools are left inside the cabinet. Document the wiring configuration for future service and store manuals with the appliance.
Tip: Keep a spare set of fuses or circuit breakers in a safe location and note the circuit amperage for reference.
People Also Ask
Do I need a professional to wire a dishwasher?
Wiring a dishwasher can be hazardous and may require a licensed electrician to meet local codes. If you lack electrical training, hire a pro to ensure safety and code compliance.
Wiring a dishwasher can be hazardous; consider hiring a licensed electrician if you’re not trained in electrical work.
What’s the difference between hard-wired and plug-in configurations?
Hard-wired connections involve a junction box and permanent wiring; plug-in uses a dedicated outlet and a power cord. Both must meet code requirements and appliance manufacturer instructions.
Hard-wired uses a junction box; plug-in uses a dedicated outlet. Both must meet code and the manufacturer’s instructions.
Can I wire a dishwasher to a regular outlet?
Some older homes permit a dedicated 120V outlet for a dishwasher, but many codes require a hard-wired connection or a grounded, GFCI-protected outlet. Always verify your local code.
A dedicated, grounded outlet may be allowed in some places, but many codes require hard-wired or GFCI protection.
What safety codes should I check?
Consult the National Electrical Code (NEC), your AHJ, OSHA guidelines for general safety, and appliance manuals. Local variations exist, so verify with your local electrical inspector.
Check NEC guidelines, your AHJ, and appliance manuals; local rules can vary.
What tools are essential for wiring a dishwasher?
Essential tools include a voltage tester, multimeter, wire strippers, screwdrivers, pliers, wire nuts, a strain-relief clamp, and an appropriately rated cord or cable.
You’ll need testers, wire strippers, screwdrivers, pliers, wire nuts, strain-relief, and the correct cord.
What if the dishwasher won’t start after wiring?
Check that the circuit is powered, verify polarity and grounding, inspect terminal connections, and test the outlet or junction box for faults. If problems persist, consult a professional.
If it won’t start, check power, connections, and the outlet; if unsure, get professional help.
Watch Video
What to Remember
- Turn off power and verify absence of voltage before touching wires
- Choose plug-in or hard-wired configurations based on code and accessibility
- Use proper gauge wiring, grounding, and strain relief for a safe install
- Test thoroughly after wiring and document the setup
- Consult authoritative references and follow local codes
