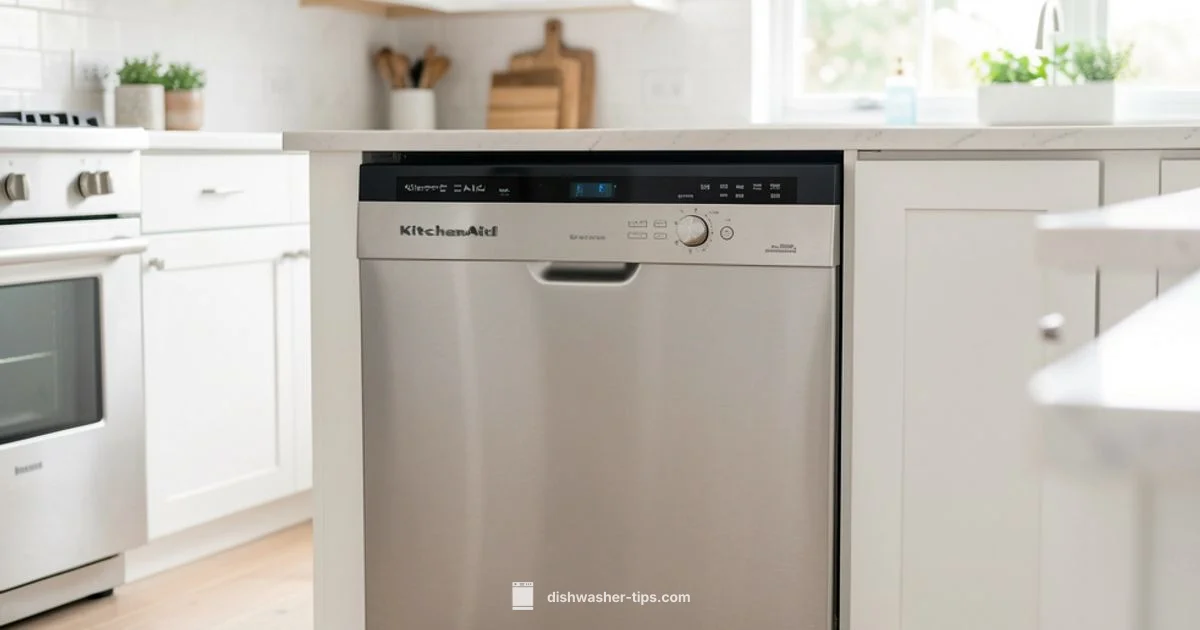

KitchenAid Dishwasher Installation: Step-by-Step Guide
Learn how to install a KitchenAid dishwasher with a clear, safe, step-by-step approach. This guide covers prep, tools, connections, leveling, testing, and maintenance to ensure a leak-free, efficient start.
Plan to install a KitchenAid dishwasher by following this step-by-step guide. This quick answer highlights the essential safety checks, required tools, and the key connections you’ll make for a proper install. You’ll understand how to prepare the cabinet opening, connect the water supply and drain, and test the unit before use.
Understanding the KitchenAid dishwasher installation landscape
When you plan kitchenaid dishwasher installation, start by understanding your model and the space it will occupy. According to Dishwasher Tips, a correct installation begins with a clear assessment of the cabinet opening, the plumbing, and the electrical box. If you’re replacing an old unit, verify that the new dishwasher will fit through the opening without trimming cabinets or surrounding panels. Measure height, width, and depth carefully, and confirm there is at least a few inches of clearance on all sides for hoses, wiring, and ventilation. This preparation reduces surprises during hookup and helps prevent leaks or door misalignment later on. You will also want to check the floor is level; an uneven base can cause the door to rub and the unit to sit unevenly. Finally, review the installation manual supplied with your KitchenAid dishwasher to understand model-specific connectors, weight limits, and recommended tools. This article uses a practical, homeowner-friendly approach to kitchen appliance installation that emphasizes safety, clean connections, and long-term reliability. The KitchenAid installation process shares common principles with other brands, but following the official manual yields the best results.
Planning the install: site readiness and measurement
A successful kitchen upgrade begins with meticulous planning. Start by measuring the cabinet opening to ensure the Dishwasher will fit and swing doors without obstruction. Confirm there is adequate space behind the unit for water and drain hoses, plus room at the top for any wiring connections. Check that nearby cabinets do not block venting or airflow and that the countertop edge aligns with the front of the appliance for a clean, built-in look. If you’re replacing an older unit, take photos of the existing connections and notes on how the old setup was wired or plumbed; this makes the transfer process smoother. Finally, gather all required tools and the manufacturer-listed installation kit before you begin. This prep helps avoid mid-project trips to the hardware store and minimizes the chance of leaks or misalignment later on.
Water supply and drainage principles
Water supply and drainage are core to a leak-free KitchenAid dishwasher installation. Attach the water supply line to the dedicated inlet valve using Teflon tape on threads to seal joints. Route the drain hose to the sink or disposer with a high loop or air gap as required by code in your area. Keep the hoses free of kinks, and secure them away from sharp edges or moving parts. If your home has hard water, consider a compatible rinse aid and regular maintenance to keep spray arms clean. Always test the drain line for proper flow before sealing the cabinet. These steps minimize the risk of backflow, clogs, or slow drainage after the first run.
Electrical safety and wiring basics
Electrical safety is essential for any appliance installation. Ensure the dishwasher is connected to a dedicated 120V circuit as per local code and the manufacturer’s instructions. If your setup involves wiring from a junction box, verify ground continuity and use proper strain relief on the cord. Avoid using extension cords; they can cause overheating and outages. If you’re uncertain about wiring, consult a licensed electrician. In many jurisdictions, a licensed professional is required for new appliance installations to meet safety standards. This section emphasizes planning and adherence to code to prevent electrical hazards during and after installation.
Preparing the cabinet and removing an old unit
If you’re removing an old dishwasher, disconnect power and water supply first, then carefully slide the unit out of the cabinet to inspect for damaged hoses or faulty clamps. Clean the interior opening and check the mounting rails for wear. If you’re installing new cabinetry or adjusting the opening, use shims to align the base and adjust for a perfectly level fit. Keep old hardware if it’s compatible and discard any corroded clamps. This step ensures a clean, stable base for the new KitchenAid dishwasher and reduces vibration or wobble.
Mounting, leveling, and securing the dishwasher
Mount the dishwasher according to the model’s manual, anchoring it with the supplied screws and brackets. Use a level to verify both front-to-back and side-to-side alignment; small shims on the rear feet can help achieve perfect level. Tighten mounting screws once the unit is level, ensuring the dishwasher remains stable during operation. Securely attach any anti-tip devices if provided, especially for households with children. Proper mounting and leveling prevent door misalignment and improve door seal performance.
Connecting water, drain, and final checks
Reconnect the water supply and drain lines, ensuring all connections are snug and leak-free. Run a test cycle with the unit empty to observe for leaks, unusual noises, or misalignment. Inspect the kick panel, door seal, and bottom of the unit for moisture after the test. If leaks appear, re-check hose clamps and connections, re-tighten as needed, and rerun the test. Finally, register the appliance with KitchenAid and review the warranty terms and recommended maintenance steps for optimal performance.
Tools & Materials
- KitchenAid dishwasher installation kit (water supply line, drain hose, inlet elbow)(Use the kit specified for your model; ensure compatibility.)
- Adjustable wrench(Sized to fit 1/4"–3/8" fittings.)
- Phillips and flathead screwdrivers(Include both sizes common to mounting screws.)
- Level(Place the unit perfectly level for door alignment.)
- Tape measure(For cabinet opening and clearance checks.)
- Teflon tape(Wrap on water inlet threads to prevent leaks.)
- Bucket and towels(Contain spills during installation.)
- Safety gloves and eye protection(Protect hands and eyes during tightening.)
- Electrical tester or multimeter(Check circuit presence if wiring from a junction box is required.)
- Calibrated screwdriver (optional)(Helpful for mounting screws.)

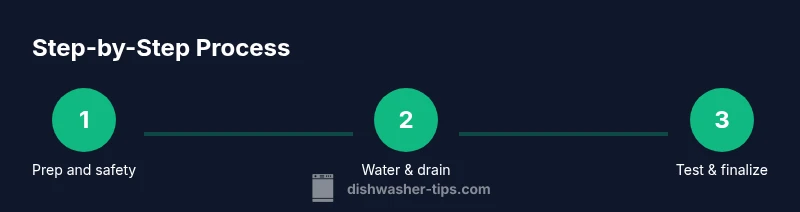

Steps
Estimated time: 60-180 minutes
- 1
Power down and prep
Turn off the circuit at the breaker and unplug the old unit if still connected. Clear the area, remove the doors if necessary, and lay down a drop cloth to protect the floor. This prepares a safe workspace and minimizes dust and debris.
Tip: Verify power is off with a tester before touching any wiring. - 2
Remove old dishwasher and clear space
Slide the old appliance out carefully, disconnecting water, drain, and power connections one by one. Clean the cabinet opening to remove old sealant or debris. This ensures the new unit sits flush and seals properly.
Tip: Take photos of existing connections for reference during reassembly. - 3
Attach mounting brackets and align opening
Install the mounting brackets and rails as per your model’s instructions. Check the cabinet opening height and width, making sure there’s room for hoses and wiring. Use shims if needed to ensure a perfectly level base.
Tip: A level front edge helps the door seal and prevents rocking. - 4
Connect water supply
Attach the water supply line to the inlet valve using Teflon tape on threads to seal joints. Route the line away from sharp edges and secure with clamps. Ensure the line is not kinked and that it can flex during operation.
Tip: Avoid overtightening; strip threads can cause leaks. - 5
Connect drain hose and air gap
Connect the drain hose to the sink or disposal, using an air gap if required by code. Create a high loop to prevent backflow into the dishwasher. Secure the hose to the cabinet to avoid movement during cycles.
Tip: Never kink the drain hose; a clear loop prevents siphoning. - 6
Electrical connections and power connection
If wiring is required, follow the manual to connect to a dedicated circuit with proper grounding. If you’re using a power cord, ensure it is securely plugged into a grounded outlet on a dedicated circuit. Do not use extension cords.
Tip: If you’re unsure about wiring, consult a licensed electrician. - 7
Level, secure, and test
Use a level to adjust front feet until perfectly level. Tighten all screws and brackets, then run a dry fit test without dishes. Check door alignment and seals before running a full cycle.
Tip: A tiny tilt can compromise the seal—re-check level before final testing. - 8
Run test cycle and finalize
Run a wash cycle with no dishes to check for leaks, noises, and proper draining. Inspect seals and hoses after completion, then wipe down to remove fingerprints and moisture. Record model details and maintenance reminders.
Tip: Keep the printed manual accessible for future reference.
People Also Ask
Is professional installation required for a KitchenAid dishwasher?
Not always. If you have basic plumbing and electrical skills, you can install it yourself following the manufacturer’s instructions and using the included installation kit. However, local codes may require a licensed professional for electrical connections or gas or venting components.
If you’re comfortable with basic plumbing and electrical work, you can install it yourself after reading the manual and using the kit.
What tools are essential for KitchenAid dishwasher installation?
Essential tools include the installation kit, adjustable wrench, screwdrivers, level, tape measure, Teflon tape, and towels or a bucket for spills. You may also use gloves and eye protection.
Have the basic toolkit ready before you start to keep the process smooth and safe.
How do I ensure a proper fit in a standard cabinet?
Carefully measure the cabinet opening and compare it to the dishwasher’s dimensions in the manual. Ensure there’s enough clearance for hoses, wiring, and venting, and verify the floor is level before installing.
Measure twice, cut once—check fit against the model specs.
What are common reasons for KitchenAid dishwasher leaks after installation?
Leaks usually come from loose water connections, poorly seated drain hoses, or an unlevel unit that compromises seals. Recheck all fittings and re-test after adjustment.
leaks happen when the fittings aren’t tight or the unit isn’t level.
How long does installation typically take?
Installation typically takes about an hour to a few hours depending on existing plumbing, cabinet space, and whether you replace an old unit. Plan for some variability.
Most people finish in about an hour if the space is ready and no additional work is needed.
Watch Video
What to Remember
- Plan with the model and space in mind
- Use the included installation kit for secure fittings
- Check level and secure mounting to prevent leaks
- Test thoroughly for leaks and proper drainage
- Keep safety first: disconnect power before handling wiring
