How to Fit a Dishwasher in Your Kitchen: A Step-by-Step Guide
Learn how to fit a dishwasher in your kitchen with a practical, expert-backed guide from Dishwasher Tips. Plan the layout, measure openings, install safely, and maintain reliability.
According to Dishwasher Tips, you can fit a standard dishwasher in most kitchens by planning space, validating utilities, and choosing a compliant model. This quick answer outlines the core steps and requirements so you can start confident, including cabinet clearance, door swing, and accessibility. You'll confirm width (usually 24 inches), depth, and height, check for a nearby inlet/outlet, and ensure a stable base before purchase.
Planning the Space for a Dishwasher
Before you buy or install, map out the available space in your kitchen. A typical built-in dishwasher has an opening around 24 inches wide, about 24 inches deep, and a height that conforms to standard cabinetry. Leave at least 1/4 inch clearance on each side for ventilation and door operation. Consider the door swing and how it interacts with nearby drawers or countertops. If you have a compact kitchen, you may opt for a slimline model (approximately 18 inches wide) but check local specs and cabinetry compatibility. The planning phase reduces surprises during installation and helps you choose a model that fits both the opening and your lifestyle. According to Dishwasher Tips, proper planning helps minimize costly modifications and ensures accessibility for daily use.
Measuring and Selecting a Model
Measure the cabinet opening precisely: width, height from floor to underside of countertop, and depth from the face frame backwards. Use a steel tape measure and record three measurements in at least two places to catch any misalignment. If you’re replacing an old unit, remove it and verify the new unit will slide in with room for hoses and water lines. When choosing a model, compare installed dimensions to your measured opening, inspect door clearance, check for a recessed toe-kick, and ensure the warranty supports standard installation on your cabinetry. The Dishwasher Tips team notes that most homes use standard 24" models; for tight spaces, look at 18" or 21" slimline options, and always verify compatibility with your sink and cabinet depth. This step reduces the risk of a failed fit and allows you to plan adjustments early.
Preparing Electrical and Plumbing Rough-ins
Electrical: Ensure a dedicated circuit per local code, with a GFCI-protected outlet nearby. Turn off the circuit, test power, and keep a clear path to the outlet. Plumbing: The dishwasher needs a hot water supply line and a drain connected to either a disposer or the sink drain via an air gap. Prepare a 1/2 inch or 3/4 inch supply line depending on your unit—most homes use 3/8" compression for the dishwasher. Use appropriate fittings and plumber’s tape. Check that the sink area has a secure trap and vent; confirm that the drain path allows gravity drainage without siphoning. Ensure you have appropriate space for hoses and electrical connections so you don’t kink or crush lines during installation. This groundwork helps avoid leaks and electrical hazards during test runs.
Cabinetry Modifications and Fitment
Remove the toe kick if needed to ensure level support and access to hoses. Use a level to check the cabinet base and adjust with shims beneath the unit for perfect front-to-back alignment. Some installations require trimming or punching out parts of the cabinet to accommodate water lines and hoses. Make sure there is adequate clearance behind the dishwasher for hoses and wiring, and that the appliance can be leveled both front-to-back and side-to-side. After adjustments, reinstall the toe kick and ensure the appliance slides in with minimal resistance. This step reduces vibration and ensures a long-lasting fit integrated with existing cabinetry.
Installing the Dishwasher: Plan, Align, and Secure
Place the dishwasher in the opening, connect the water supply to the inlet valve, attach the drain hose to the inlet or air gap per the manufacturer instructions, and secure the mounting brackets to the cabinetry. Level the unit and check that the door latches properly. Reconnect power according to local codes and test the circuit with the unit unplugged before running a cycle. Once you confirm there are no leaks, plug in the unit and run a short wash to verify operation. Proper alignment and secure mounting prevent movement during use and reduce noise.
Safety, Warnings, and Troubleshooting Tips
Never work with live electrical wires inside cabinetry; use a GFCI-protected outlet and keep all connections dry. Avoid kinking hoses; ensure hose clamps are tight and straight runs. If leaks appear, check seals around the tub and door gasket, verify the drain path is free of clogs, and ensure the drain hose height meets the appliance’s requirements. If your space lacks a proper water line or drainage, a professional installation may be safer and faster. Always follow manufacturer instructions for model-specific steps to minimize risk.
Final Checks and Maintenance
Reinstall the toe kick, seal the interior with silicone where needed to prevent moisture intrusion, and check the area for mold risk. Run a short empty wash cycle to verify operation and inspect for leaks around the door and bottom seam. Keep the area dry and maintain the cabinet around the dishwasher to prevent water damage. Regularly clean the filter and spray arms to maintain optimal cleaning performance and energy efficiency. These habits extend the life of your appliance and protect cabinetry from moisture damage.
Tools & Materials
- Measuring tape(at least 25 ft (7.6 m) long)
- Pencil and notepad(for measurements and notes)
- Spirit level(staright edge for level installation)
- Screwdriver set (Phillips and flathead)(for brackets and panels)
- Adjustable wrench(for water supply fittings)
- Teflon tape and thread sealant(to seal fittings)
- Silicone sealant (kitchen-safe)(for moisture sealing around cabinet seams)
- Dishwasher installation kit (optional)(includes hoses and adapters)
- Drain hose, hose clamps(match unit specifications)
- GCFI tester(verify outlet protection)
- Utility knife(trim cabinetry as needed)
- Safety goggles and gloves(personal protection)

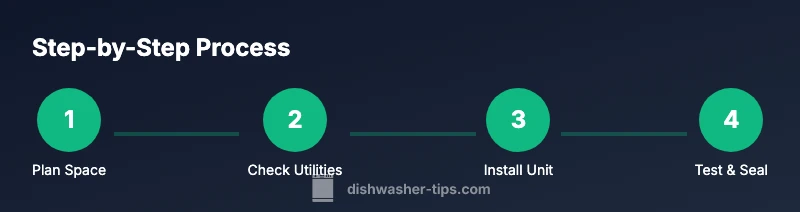

Steps
Estimated time: 2-4 hours
- 1
Verify space and model choice
Confirm the opening size, door clearance, and cabinet depth before choosing a model. This prevents buying a unit that won’t fit and saves time on troubleshooting later.
Tip: Measure in three directions at multiple points to catch any irregularities. - 2
Prepare tools and materials
Gather all required tools and parts in one place to streamline installation. Check that you have a dedicated electrical circuit and proper plumbing adapters before starting.
Tip: Lay out items methodically to avoid misplacing fittings during installation. - 3
Shut off water and power, remove old unit
Turn off the home’s water supply and disconnect power to the old dishwasher. Gently remove the old unit and clear debris from the cabinet opening.
Tip: Double-check that the circuit is de-energized with a tester. - 4
Prepare cabinet and opening
Remove toe kick if required, trim panels, and shim the cabinet for level support. Ensure there is space behind the unit for hoses and wiring without pinching.
Tip: Check for square opening; adjust shims until the front edge is level. - 5
Connect water supply and drain
Attach the hot water supply line with appropriate fittings and route the drain hose to the sink or air gap. Ensure proper clips and seals to prevent leaks.
Tip: Use an air gap where code requires it and test seals with a small amount of water. - 6
Slide in and level the dishwasher
Carefully slide the dishwasher into the opening and adjust leveling feet until the unit is plumb and level side-to-side and front-to-back.
Tip: Avoid forcing the unit; back out and re-align if resistance is felt. - 7
Secure, reconnect power, and test
Mount the unit with brackets, reconnect power, and run a short test cycle to verify water flow and drainage without leaks.
Tip: Check for leaks under the unit during the initial wash. - 8
Final seal and cabinet reassembly
Seal any gaps with silicone, reattach toe kick, and wipe down the area for moisture control. Schedule a full test run after a few hours to ensure long-term performance.
Tip: Document mounting screws and settings for future service.
People Also Ask
Can I install a dishwasher myself or should I hire a professional?
Many homeowners can install a dishwasher with basic plumbing and electrical skills, following the manufacturer’s instructions and local codes. If you’re unsure about electrical work or plumbing connections, hire a licensed pro to ensure safety and compliance.
You can try it yourself if you’re comfortable with basic plumbing and electrical work, but if in doubt, hire a licensed professional for safety and code compliance.
What is the standard width for a built-in dishwasher?
Most built-in dishwashers are 24 inches wide, but slimline models exist at 18 or 21 inches. Always compare the unit’s installed width to your cabinet opening before purchasing.
Most built-in dishwashers are 24 inches wide; smaller options are 18 or 21 inches. Check your cabinet opening before buying.
Do I need a dedicated electrical circuit for a dishwasher?
Yes. In many regions, a dishwasher requires a dedicated circuit, often on a GFCI-protected outlet, per local code. Consult a licensed electrician if you’re unsure about wiring or circuit capacity.
Yes, you typically need a dedicated circuit with GFCI protection. If unsure, consult an electrician.
What’s the best way to handle the drain hose?
Route the drain hose to the sink drain or disposer via an air gap or high loop as required by code. Ensure the hose isn’t kinked and is securely fastened to avoid leaks.
Connect the drain hose through an air gap or high loop as required, and secure it to prevent leaks.
How long does a typical installation take?
For a seasoned installer, expect 2-4 hours. If you’re replacing an old unit or making cabinet modifications, set aside more time and plan for unexpected adjustments.
Typically 2-4 hours for a straightforward install, more if you’re modifying cabinets.
What maintenance helps extend dishwasher life?
Regularly clean the filter, spray arms, and door seals; check hoses for wear; and run an empty cycle monthly to keep the pump and drain clear. Proper maintenance reduces costly repairs.
Clean the filter and spray arms, check hoses, and run an empty cycle to prevent buildup.
Watch Video
What to Remember
- Plan space and utilities before buying.
- Measure opening precisely and verify model fit.
- Follow code-compliant electrical and plumbing guidelines.
- Level and secure the unit to prevent movement and leaks.
- Test thoroughly and maintain the area to prevent moisture damage.
