How to Install Dishwasher Plumbing: A Practical Guide

Why proper dishwasher plumbing installation matters

A reliable dishwasher plumbing setup prevents leaks, water damage, and pest issues, while ensuring smooth, quiet operation. The phrase how to install dishwasher plumbing captures the core processes—from selecting the right supply line to configuring a proper drain and trap. According to Dishwasher Tips, following a code-conscious approach reduces call-backs and DIY mistakes. A systematic install also helps prevent cross-contamination and ensures your dishwasher drains correctly into the home waste line. Proper plumbing minimizes standing water under the cabinet, reduces mold risk, and protects the surrounding wood and finishes. This is why investing time in correct fittings, clean threads, and appropriate sealants pays off over the long term. Expect to verify the water shutoff is fully closed, the drain path is clear, and all connections are tight before applying power to the unit. If your home uses a garbage disposal, plan for a clean knock-out plug removal or a proper direct-tailpiece connection to avoid drainage issues.

Planning and safety prerequisites

Before diving into any plumbing work, set clear safety steps. Turn off the home water supply and disconnect power to the dishwasher to prevent shocks. Gather a basic toolbox and a few consumables, then confirm there is enough space under the sink and behind the unit for hoses and fittings. Check local codes for required components such as an air gap or high loop on the drain line, especially if you have a south-facing kitchen with a tight cabinet. Make a quick assessment of the existing supply line, sink tailpiece, and disposal connection. If the route to the drain is blocked or awkward, you may need to rearrange hoses or install a short extension piece. Finally, measure the available clearance to determine hose length and ensure no kinks can form during normal operation.

Tools and materials overview

A successful install relies on having the right tools and materials on hand. Essential items include an adjustable wrench, channel-lock pliers, a screwdriver set, a bucket, and towels to catch any spills. You will also need PTFE plumber tape, silicone sealant or plumber’s putty, a flexible water-supply hose (3/8 inch compression), a dishwasher discharge hose, and assorted hose clamps. A tubing cutter or utility knife helps when trimming hoses, and a flashlight improves visibility in tight cabinet spaces. Keep extra washers and replacement gaskets in a small parts tray to prevent delays mid-task. Having the right materials ready prevents rework and keeps the installation on track.

Water supply considerations and code basics

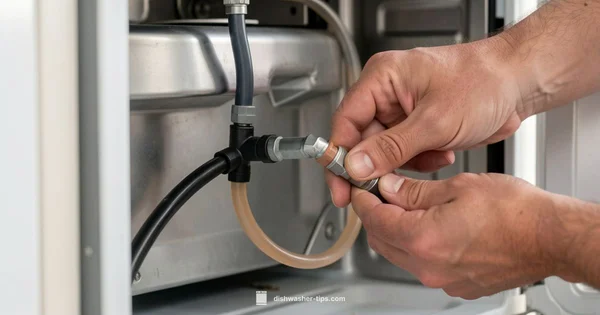

The common water-supply connection for a dishwasher uses a 3/8 inch compression fitting. Some homes may use a 1/2 inch line; check your shutoff valve and existing supply hose to confirm compatibility. Use PTFE tape on metal threads and non-silicone safe thread sealant where appropriate to ensure a watertight seal. Do not over-tighten connections; hand-tight plus a quarter-turn with pliers is usually sufficient. If your local code requires, install a 1.5 to 2 inch air gap above the sink or install a high loop under the cabinet to prevent backflow. Always verify that the electrical outlet serving the dishwasher is GFCI-protected and accessible, and never locate electrical components in a wet zone under the sink.

For renters, ensure you have written permission to modify the plumbing setup and use reversible methods whenever possible.

Drainage and trap configuration essentials

The discharge hose should run to the sink drain or garbage disposal with a high loop or air gap as required by code. If you attach directly to a disposal, remove the knockout plug within the disposer inlet but only after confirming the disposer is disconnected. Use a trap or tailpiece compatible with your sink and dishwasher drain hose to prevent siphoning. A properly loops high near the underside of the counter and a secure hose clamp prevents backflow and leaks. If a garbage disposal is not available, connect to the sink tailpiece via a dedicated branch connection and ensure a clean, straight path to avoid kinks. Always check for leaks after tightening clamps and test with water only before running a full cycle.

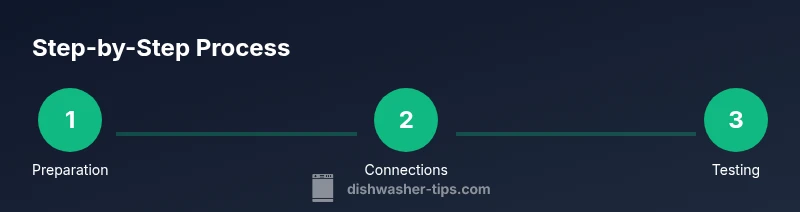

Step-by-step overview of the installation process

This section provides an overview of the key stages you will perform in sequence. Start by shutting off the water and power, then disconnect the old lines and vent connections. Install the new water-supply hose to the shutoff valve, threading the connector with PTFE tape as needed. Attach the other end to the dishwasher inlet, ensuring a snug fit. Route the drain hose to the disposal or tailpiece, install the air gap or high loop, and secure with clamps. Finally, restore power and run a test cycle with the unit empty to confirm there are no leaks and that drainage is working properly. If any drip appears, re-check all threaded joints and clamps.

Testing, seals, and adjustments

Leaking joints are a common call-back after installation. Begin with a slow water test, watching every connection for signs of moisture. Tighten connections a small amount at a time, never forcing a metal-threaded joint. Check the drain side with the unit running briefly, ensuring there is no backup or slow draining. If you notice a drip from a hose, reapply PTFE tape to the thread and reseal with plumber’s putty if needed. Keep towels underneath, especially during the initial test phase, to catch any small leaks. If leaks persist, you may need to replace washers or clamps or re-evaluate the route to avoid sharp bends.

Common installation pitfalls and fixes

Pitfalls include over-tightening metal fittings, using the wrong hose size, failing to secure the drain hose, and neglecting a proper high loop or air gap. To fix a loose connection, re-seat the fitting and apply PTFE tape evenly around the male threads. Replace worn washers and clamps that show signs of cracking or corrosion. If the cabinet smells damp or you observe staining, it is likely you have a slow leak; recheck all joints and ensure there is no water pooling under the cabinet. Finally, document the installation with photos for future maintenance and any warranty considerations.

Maintenance after installation

After installation, schedule a quick inspection every 6–12 months to check hoses, clamps, and seals for wear. Periodically run a rinse cycle to clear any debris from the drainage pathway and verify there is no standing water in the cabinet. Keep the area dry and free of clutter to prevent accidental damage to hoses. If you ever notice decreased draining speed, inspect for kinks or clogs in the drain hose and check the trap. Proper maintenance reduces the risk of leaks and prolongs the life of the appliance.
