Frigidaire Dishwasher Drain Pump: Definition, Troubleshooting, and Replacement
Learn what a Frigidaire dishwasher drain pump does, signs of failure, safe DIY troubleshooting, and how to replace it. Practical tips to keep your dishwasher draining efficiently.

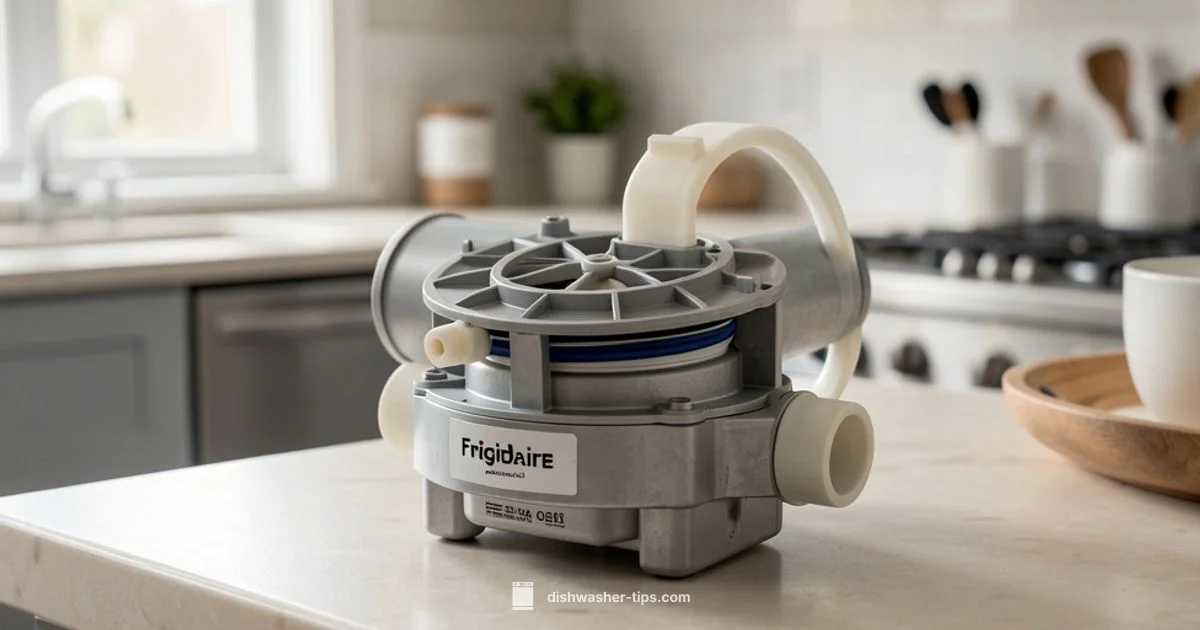

Frigidaire dishwasher drain pump is a small electric pump that moves used water out of the dishwasher during the drain cycle; a key part of the drainage system.
What is a Frigidaire Dishwasher Drain Pump?
Frigidaire dishwasher drain pump is the heart of the drainage system. It is typically a compact electric motor connected to an impeller that pushes used water from the sump through a discharge hose to the household drain during the drain portion of a cycle. In most models, the pump sits at the bottom of the tub, often near the filter and sump, and couples with a check valve to prevent backflow. According to Dishwasher Tips, the pump's design emphasizes reliability and compact form to fit beneath the dishwasher's base. A failure can be caused by debris, worn impellers, or a seized motor, which prevents the dishwasher from emptying water properly and can lead to standing water after a cycle. Understanding the pump's role helps homeowners recognize when symptoms point to drainage issues rather than other problems such as a clogged filter or blocked spray arms.
Common Symptoms of a Failing Drain Pump
A Frigidaire dishwasher drain pump may fail subtly or abruptly. Common symptoms include water remaining in the bottom of the tub after a complete cycle, the dishwasher failing to reach the drain portion of the cycle, or audible grinding, buzzing, or high-pitched whirring sounds during the drain phase. You may also notice that the pump housing or area around the base is unusually warm if the motor is overheating. Another clue is a tripped circuit or blown fuse if the pump shorts; however this is less common. By distinguishing drain pump problems from clogged filters or a kinked drain hose, you can narrow down the cause more quickly. Dishwashers in newer lines of Frigidaire models may also display an error code related to drainage, which should be cross-referenced with the user manual.
Safe Troubleshooting Steps for Not Draining
Before you touch any electrical components, unplug the dishwasher or switch off the circuit to avoid shock. Start with simple checks: remove the bottom rack, pull out the filter screen, and clean out any food debris. Check the drain hose at the back of the unit for kinks or clogs and ensure it runs uphill from the drain. Next, inspect the sump area for debris packing around the pump inlet and around the impeller. If you can access the pump, disconnect the power leads and test continuity with a multimeter. If you do not get a reading or get an open circuit, the pump may be burned out and require replacement. If your model has a removable pump screen, clean it thoroughly and reassemble. For models with a built-in filter or screen, ensure it is in good condition and reseated correctly. Remember: if you are uncomfortable with electrical tests, contact a professional or refer to the Frigidaire service manual.
How to Inspect and Test the Drain Pump
Inspect the pump carefully for signs of wear or damage to the impeller or housing. Disconnect power to avoid shocks first. Remove the supply wires to the pump and use a multimeter to test for continuity across the pump's terminals. A healthy pump will typically show a stable resistance value, while a burned-out pump may read open or vary with temperature. Visually check the impeller for breaks, cracks, or obstructions, and spin it gently to confirm it rotates freely without obstruction. While testing, also verify that the harness connectors are clean and firmly seated. If your model uses a separate impeller cover or gasket, inspect for cracks and replace if necessary. After testing, reassemble carefully and run a short wash to verify drainage before putting dishes back in.
Replacing or Repairing the Frigidaire Drain Pump
If the pump is confirmed faulty, you have two main options: replace the pump with a model-specific Frigidaire part or pursue a professional repair if the unit is under warranty or the model requires specialized tools. Replacement involves disconnecting the power, removing the lower access panel, and detaching the pump from the sump and hoses. Install the new pump by connecting the wiring harness, securing the pump to the base, and reattaching the discharge hose with a new clamp if recommended by the manufacturer. Always refer to your model's service manual for torque specifications and gasket placement. After installation, run a test cycle with no dishes to confirm proper drainage and check for leaks around the pump and hoses. If you are unsure about compatibility or installation steps, consider a professional service call from a trusted technician. For warranty concerns, verify whether any replacement qualifies under the original purchase or extended coverage.
Maintenance Tips to Prevent Drain Pump Problems
Prevention starts with regular cleaning of filters and debris screens, which helps reduce the likelihood of pump clogging. Clean the sump area and inspect the drain hose for kinks or mineral buildup, especially in areas with hard water. Use recommended dishwasher detergents and avoid harsh cleaners that can degrade seals. Periodically check the hose clamps and mounting screws to ensure everything remains secure. If your water is particularly hard, consider a basic water treatment that reduces mineral buildup that can affect pump performance. A small amount of dishwasher rinse aid can help manage film that may affect draining efficiency. By building a routine of quick inspections every few months, you can extend the life of the drain pump and prevent unexpected breakdowns.
When to Call a Professional and Warranty Considerations
If you notice persistent drainage problems after basic troubleshooting, it may be time to contact a licensed appliance technician. Problems beyond your comfort zone, such as a suspected motor winding issue or a leak around the pump seal, benefit from professional service. If your Frigidaire is still under warranty, check the terms to see whether pump replacement is covered and whether service by an authorized technician may be required to preserve warranty. Document the symptom history, model number, and mounting arrangement to help the technician diagnose quickly. In some cases, pumps can be replaced under recall notices or extended service programs; check the Frigidaire official site or your retailer for such updates. Dishwasher Tips emphasizes balancing safe DIY checks with professional help to avoid further damage or safety risks.
Quick Reference Checklist for DIY Drain Pump Care
- Power off before any inspection or repair
- Clean the filter and sump area regularly
- Inspect hoses for kinks or clogs
- Check pump impeller for wear and obstructions
- Verify electrical connections are secure
- Run empty cycles to verify drainage after maintenance
- Keep model number handy for parts compatibility
People Also Ask
What is the function of the Frigidaire drain pump?
The drain pump moves used water out of the tub during the drain cycle, enabling the dishwasher to finish each wash. If the pump fails, drainage may be incomplete or incomplete drainage may occur.
The drain pump moves dirty water out of the dishwasher during the drain phase, helping the cycle finish properly.
How can I tell if the drain pump is failing?
Look for water left in the bottom after a cycle, unusual noises during draining, or failure to complete the drain. If the breaker trips or the motor overheats, that can also indicate a problem.
If your dishwasher leaves water behind, makes grinding or buzzing sounds when draining, or won’t complete the drain, the drain pump may be failing.
Can I replace the drain pump myself?
Yes, with the right model specific part and proper safety steps. Follow the manufacturer’s instructions and disconnect power before starting.
Yes, you can replace it yourself if you have the right part and tools, and you follow safety steps.
Are Frigidaire drain pumps interchangeable across models?
Pumps vary by model, so compatibility should be confirmed using your dishwasher's model number. Do not assume interchangeability.
Pumps aren’t always interchangeable; check the exact model before buying.
What maintenance helps prevent drain pump failures?
Regularly clean filters, inspect hoses for kinks, and ensure seals and clamps are intact. Hard water buildup should be managed with appropriate rinse aids or water treatment.
Keep the filters clean and the hoses clear; regular checks prevent pump problems.
What should I do if the pump is blocked by debris?
Power off, remove debris from the pump inlet and impeller area, and reseat the screen if applicable. Re-test drainage before using again.
Shut off power, clear the debris, and re-test the drainage.
What to Remember
- Inspect the pump and filter for clogs before replacement.
- Unplug the unit and disconnect power before inspection.
- Test pump continuity with a multimeter if you can.
- Use model specific parts to ensure proper fit.
- Regular maintenance prevents drain pump failures.
