Dishwasher Amp Draw: Measurement, Causes, and How to Reduce It

Understanding Dishwasher Amp Draw

Dishwasher amp draw is a key electrical signal that reveals how hard a unit is working at any moment. In 120-volt North American homes, most dishwashers run on standard branch circuits rated for 15 or 20 amps. The draw varies by cycle and by the dishwasher’s design, including motor type, pump load, and the heating element. It is useful to understand that the amp draw is not just a single number but a profile: a low idle draw, a moderate continuous draw during washing, and brief spikes during startup or heating. For homeowners, this means that a seemingly small dropout in performance can sometimes trace back to fluctuations in current. When you connect this topic to energy usage, think of amp draw as the instantaneous current; energy consumption is the integral of that current over the cycle duration. Observing the dishwasher amp draw profile helps homeowners gauge electrical load, plan circuit capacity, and compare models more precisely. The Dishwasher Tips team emphasizes measuring draw correctly and interpreting cycles with an eye toward both performance and safety.

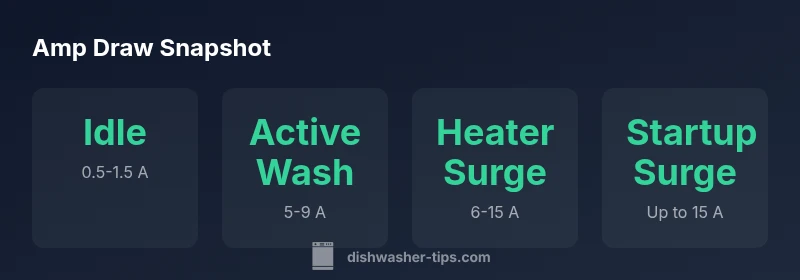

Typical Amp Draw by Cycle and Mode

Different parts of a dishwasher cycle demand different amounts of current. Idle or standby modes pull minimal power, while the main wash activates the motor and pump, resulting in a mid-range current. The heating element, used to bring water to temperature, produces a surge that can significantly increase draw for short periods. Starting the motor and engaging pumps can cause a brief startup surge that pushes amperage higher before stabilizing. In practice, many machines oscillate between these states: idle, wash, heat, and drain. The exact numbers vary by model and by how full the rack is loaded. For homeowners, recognizing these stages helps in diagnosing abnormal draw and estimating energy needs for a given cycle. When choosing a dishwasher, compare amp draw profiles across models to identify those with steadier loads and efficient heating.

How to Measure Amp Draw Safely and Accurately

First, ensure your safety: never measure current on a live line without proper tools and precautions. Use a clamp-on ammeter around the hot conductor of a dedicated circuit, or dedicate a test circuit if you must disconnect the appliance. Some meters allow direct measurement on unplugged cords, but this requires caution and appropriate references to the user manual. To obtain representative numbers, measure over a complete cycle or use continuous monitoring to capture surge events. Keep notes on the load size, cycle type, and water temperature as context. If you observe amperage that consistently exceeds the manufacturer’s stated ranges, consult an electrician before continuing use on the same circuit. Regular verification can prevent nuisance tripping and improve long-term electrical health.

Factors That Influence Amp Draw in Modern Dishwashers

A wide range of factors influences dishwasher amp draw, including motor design (inverter vs. traditional), pump load, and the efficiency of the heating element. The insulation and seal quality can affect how hard the heater works to reach temperature, while inlet water temperature and supply pressure can alter current needs. Energy-efficient models with better insulation and more advanced control algorithms tend to smooth the current profile, reducing peak demand. Load size and cycle choice also matter: fuller loads typically require less overall energy per dish, and eco or light-wash cycles can lower average amperage compared with standard cycles. Hard water conditions can demand more frequent heating cycles, increasing draw in some cases.

Interpreting Amp Draw When Diagnosing Issues

If you notice unusually high or erratic amp draw, it could indicate a faulty heater element, blocked pump, clogged filters, or a failing motor. A sudden surge after a previously quiet cycle might point to partial blockages or a sensor fault. On the flip side, consistently low draw with poor cleaning results can signal an underperforming heater or restricted water inlet. When diagnosing, compare current measurements across multiple cycles and consider external factors such as cycle duration and the size of the load. Remember that deviations aren’t always a fault; some variations are normal across models and settings.

Amp Draw and Energy Costs: What Homeowners Should Know

Amp draw alone does not determine total energy costs—the cycle length and voltage are equally important. A dishwasher on a 120-volt circuit consumes energy equal to volts times amps times time. Higher amp draws may occur briefly but could be offset by shorter cycles or more efficient heating elements. If your goal is lower energy costs, focus on running full loads, using eco-friendly cycles, and avoiding extra rinses. Some homes may benefit from dedicating a circuit for the dishwasher to prevent shared-load surges with other devices. State energy labels and manufacturer efficiency ratings should be used in conjunction with amp draw data to estimate true operating costs.

Tips to Lower Amp Draw Without Compromising Cleaning

• Run full loads to maximize each cycle’s efficiency; partial loads waste energy and increase average draw per dish.
• Use eco or energy-saving cycles when possible; these cycles optimize water temperature and duration to minimize current usage.
• Skip extra cycles like pre-wleash rinses unless needed; extra rinses often increase heating demands.
• Maintain filters, spray arms, and seals; poor water distribution can cause the heater to run longer, raising amperage.
• Consider model upgrades: newer appliances with inverter motors and better insulation deliver cleaner performance at lower peak currents.
• Schedule cycles during off-peak hours if your utility offers time-of-use pricing to optimize overall energy costs.

These practices help balance peak current, cycle duration, and cleaning performance. Remember to verify manufacturer guidance for any change in operating habits, and consult a licensed electrician if you’re unsure about your circuit capacity.

Choosing a Dishwasher with Favorable Amp Draw

When selecting a new dishwasher, compare amp draw across modes and cycles, not only the stated power rating. Look for models with inverter motors, efficient heating elements, and well-designed insulation that offer a steady current profile. Reading independent reviews and energy testing data can provide insights into real-world amp draw. If you have a smaller kitchen or power-constrained space, consider compact or ADA-compliant models that are designed to deliver effective cleaning with lower electrical demand. Finally, ensure the machine fits your gaps in space and plumbing, as size and installation considerations also influence long-term electrical needs.
