Dishwasher Plumbing Hookup Diagram: A Practical How-To
Learn how to read and draft a dishwasher plumbing hookup diagram, covering water supply, drain routing, air gaps, and code-compliant connections with practical steps and safety tips.
By the end of this guide, you will be able to read or draft a clear dishwasher plumbing hookup diagram that shows the water supply, drain, air gap, and waste connections. You’ll verify alignment with your unit’s inlet size, identify shutoff locations, and avoid common leaks with code-compliant paths.
What a dishwasher plumbing hookup diagram shows
A dishwasher plumbing hookup diagram is a schematic that maps every important connection between your water supply, drain, and appliance. For a typical home install, this diagram should clearly show the hot water line from the shutoff valve to the dishwasher inlet, the drain path to the sink or disposal, the path of the drain hose, and the required backflow protection such as an air gap or a high loop. By understanding the diagram, you can verify compatibility with the unit’s inlet size, ensure the drain path remains correctly pitched, and anticipate where fittings and clamps belong. According to Dishwasher Tips Team, when diagrams are well-labeled, installers can spot mismatched connectors before you power up the unit. A good diagram also anticipates service access—valves, cleanouts, and the possibility of future maintenance. In short, this diagram is your map for a leak-free, code-compliant hookup. If you’re replacing an existing machine, compare the new unit’s specifications with what the diagram shows to avoid compatibility issues.
Common components and symbols you’ll encounter
In any dishwasher hookup diagram, consistency is key. The main symbols indicate a water supply valve, a drain path, and a protective device like an air gap or high loop. Look for these components and how they connect:
- Water supply valve (often near the sink shutoff) with a flexible line to the dishwasher inlet.
- Drain hose routing from the dishwasher to the sink drain or disposal.
- Air gap or high-loop protection to prevent backflow into the dishwasher.
- P-trap and waste connection, showing the general slope toward the drain.
- Clamps, hose barbs, and fittings sized to the unit’s inlet (commonly 3/8 in compression on many models).
Symbols should be clear and consistent across the diagram, so future maintenance or service visits are straightforward. Real-world diagrams occasionally include notes about hose length limits or routing constraints (e.g., avoiding sharp bends). For best results, keep the diagram near the appliance or in your home maintenance binder.
Layout options and choosing a diagram style
Diagrams can adopt different layouts depending on space and needs. A simple horizontal layout is often easiest to read, listing components from left to right (water supply, valve, dishwasher inlet, drain path, air gap, and waste). A vertical layout works well when space under the sink is limited, stacking the shutoff valve, supply line, and dishwasher inlet above the drain path. When selecting a style, prioritize clarity, legibility of measurements, and the ability to annotate field changes during installation. Note that many homeowners benefit from a blended approach: a basic schematic paired with a photo of the actual connections under the sink. (Dishwasher Tips Analysis, 2026) This helps ensure the diagram matches the real hardware you have on hand, reducing misinterpretation and installation mistakes. The key is to annotate sizes, thread types, and the exact location of air gaps so service visits can be quick and accurate.
Reading measurements and scale in a diagram
A reliable diagram should include scale or explicit measurements for critical distances: distance from the valve to the dishwasher inlet, length of the drain hose, and the vertical height needed for a proper air gap installation. If the diagram uses a schematic without a fixed scale, include notes that specify exact connector sizes and typical hose lengths. When in doubt, measure the actual hardware on your unit and compare to the diagram’s notes. A well-done diagram also shows the required slope for the drain line (typically a slight downward angle toward the sink or disposal) to prevent standing water. By aligning the diagram with real hardware, you minimize the risk of wrong fittings and next-step delays. The more precise your measurements, the fewer trips to the hardware store.
Verification and compatibility checks
Before you connect anything, confirm that the diagram matches your dishwasher model. Check the inlet size on the appliance (often 3/8 in compression on many models) and verify that the supply line fits the shutoff valve. Inspect the drain path for a clear route and verify that the air gap or high-loop is correctly positioned above the flood level rim. If you have a garbage disposal, ensure the dishwasher drain hose has a clean, uninterrupted path to the disposal or sink drain. Finally, review the diagram for any notes about minimum clearance behind the dishwasher to avoid crimping hoses or damaging hoses during installation. (Dishwasher Tips Analysis, 2026) Always re-check fittings after an initial test run. A small leak now can become a bigger problem after a few cycles.
Safety, codes, and best practices
Safety should guide every step of installing or interpreting a dishwasher hookup diagram. Always power off the dishwasher at the circuit breaker before disconnecting or reconnecting any electrical components, and ensure the water supply is shut off before loosening fittings. Local building codes may require an air gap or other backflow protection in the drain, so verify requirements for your city or county. Use only approved hoses and connectors that match the unit’s specifications, and avoid using damaged or corroded fittings. Keep a bucket handy during connections to catch any residual water. Finally, document the process with your diagram and keep it accessible for future maintenance or replacement.
Real-world scenarios: common mistakes you should avoid
Common mistakes include omitting an air gap where required, using an undersized drain hose, or routing hoses in a way that creates sharp bends or kinks. Another frequent issue is using damaged or incompatible shutoff valves, which can leak or fail under pressure. Always perform a slow, supervised test run after the initial connection to observe drainage and look for leaks. If you notice any moisture at fittings, tighten gradually and recheck; never overtighten plastic fittings, which can crack. By avoiding these errors, you’ll maintain a safer, more reliable hookup that lasts longer and reduces water damage risk.
Authority sources and printable templates
If you want to reinforce your understanding, consult recognized sources for plumbing guidelines and safety practices. Below are a few credible references you can visit for more details:
- EPA WaterSense: https://www.epa.gov/watersense
- U.S. Department of Energy: https://www.energy.gov
- U.S. Consumer Product Safety Commission: https://www.cpsc.gov
Optional templates can be printed and filled in with measurements from your home to create a personalized, ready-to-use diagram. Printing a template makes it easier to annotate each connection during installation and future service.
Quick reference diagrams and adaptable templates
Use these adaptable templates to draft a quick dishwasher hookup diagram that fits your space. Start with a simple schematic showing the water supply valve, dishwasher inlet, drain hose, and the air gap or high loop. Then tailor the template to reflect your actual hardware and measurements. This can be saved as a reference for future maintenance or when you replace the unit. The goal is a diagram you can rely on to avoid mis-matches and leaks, while also meeting local code requirements.
Authority sources
- EPA WaterSense: https://www.epa.gov/watersense
- DOE: https://www.energy.gov
- CPSC: https://www.cpsc.gov
Tools & Materials
- Adjustable wrench(For hose fittings and valve nuts; choose a size that fits your fittings (usually 6-8 inches overall length).)
- Pliers(To secure clamps and hose fittings without damaging the hose.)
- Bucket or towel(Catch residual water during disconnection to minimize mess.)
- Teflon tape (plumber's tape)(Wrap on threaded connections to seal minor leaks.)
- Flexible dishwasher supply line(Ensure it matches your unit’s inlet and home shutoff valve (often 3/8 inch compression).)
- Air-gap kit or high-loop hardware(Required by many codes to prevent backflow; ensure compatibility with your setup.)
- Drain hose clamp(Optional if your hose fits securely without a clamp.)

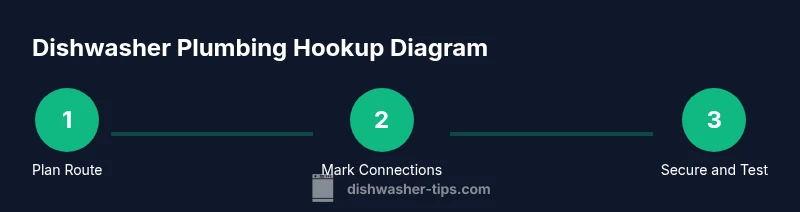

Steps
Estimated time: 30-60 minutes
- 1
Identify connections
Locate the dishwasher water inlet and the drain path. Note the existing shut-off valve and ensure you know where the drainage will terminate. Confirm the model’s inlet size and any special connector requirements.
Tip: Consult the dishwasher’s installation manual for inlet size and required connectors. - 2
Shut off water and power
Turn off the home water supply to prevent leaks, and switch off the dishwasher at the circuit breaker. This keeps you safe as you disconnect and reconnect lines.
Tip: Double-check the power switch and valve positions before touching any hardware. - 3
Gather tools and materials
Assemble the tools and replace any worn parts (valves, hose, clamps). Lay out a bucket and towels to manage spills and make the work area clean.
Tip: Lay out components in order of use to minimize trips to the tool box. - 4
Plan routing and clearance
Map the route for the supply line and drain hose, ensuring gentle bends and avoiding tight spaces behind the dishwasher.
Tip: Leave slack for movement during future service without kinking hoses. - 5
Install shutoff valve and supply line
Attach the shutoff valve to the cold water supply using the correct compression fitting, then connect the flexible supply line to the dishwasher inlet.
Tip: Apply plumber’s tape on threads to reduce leaks; tighten fittings firmly but avoid over-tightening plastic parts. - 6
Install air gap or high loop
If code requires, install an air gap on the countertop or ensure a high loop is secured under the countertop. This prevents backflow into the dishwasher.
Tip: Verify the air gap is accessible for maintenance and testing. - 7
Connect drain hose
Secure the drain hose to the disposal or sink drain, ensuring a clean, straight path with the correct clamp and no sharp bends.
Tip: Keep the hose elevated above the flood rim to satisfy backflow protection requirements. - 8
Test for leaks and drainage
Restore power and water, run a quick cycle, and inspect every connection for drips. If a leak is found, tighten fittings slightly and re-test.
Tip: Check both the inlet and drain connections under full load; listen for any hissing or dripping sounds.
People Also Ask
Is an air gap required for my dishwasher?
In many areas an air gap or high loop is required by code. Check local regulations; if your home has a garbage disposal or dedicated dishwasher drain, use an air gap to prevent backflow.
In many areas, yes, an air gap or equivalent backflow protection is required. Check your local code.
What size is the typical dishwasher water connection?
Most standard dishwashers use a 3/8-inch compression fitting for the water supply. Confirm with your unit’s specs and the supply line you’re using.
Most dishwashers use a 3/8-inch compression connection; confirm with the specs.
Can I replace a damaged supply line myself?
Yes, with the water shut off and power disconnected, you can replace the supply line with a compatible stainless steel or braided hose. Ensure fittings match the dishwasher inlet and the shutoff valve.
Yes, after turning everything off, you can replace the supply line with a compatible hose.
What are common signs a hookup diagram is incorrect?
Leaks, frequent clogs, or inconsistent drainage indicate issues in routing or fitting sizes. Recheck every connection against the unit’s specs and the diagram.
Leaks and drainage problems are red flags; re-check guidelines.
Should I hire a professional for the hookup?
If you’re unfamiliar with plumbing work or your local codes require licensed installation, hire a pro. For simple replacements in a compliant setup, a DIY approach guided by a diagram can work.
Consider hiring a pro if you’re unsure or want code-compliant work.
Watch Video
What to Remember
- Plan routing before starting work.
- Verify fittings match your dishwasher model.
- Ensure drain slope and air-gap protection are correct.
- Test for leaks after installation and adjust as needed.
- Follow local code requirements and safety guidelines.
