How to Plumb Dishwasher and Washing Machine Together
Learn how to plumb dishwasher and washing machine together with a practical, code-conscious approach. This guide covers planning, drainage, venting, water supply, and safety considerations for a compact laundry setup.
This guide explains how to plumb dishwasher and washing machine together, covering planning, drainage, venting, and safety. Note that many local codes require separate drains; if you proceed, design a shared drain only where permitted, with proper venting, shutoffs, and trap sizes. Always verify code compliance before starting.
Why you might want to plumb dishwasher and washing machine together
In compact utility spaces, homeowners often seek space-saving solutions that reduce the footprint of plumbing lines. Learning how to plumb dishwasher and washing machine together can simplify access to shutoffs and create a cleaner utility zone. According to Dishwasher Tips, feasibility hinges on layout, venting, line sizing, and local code requirements. Not all jurisdictions permit a shared waste line, so start by verifying with your local building department. If allowed, a well-planned shared drain or closely staged standpipes can free up cabinet space and simplify maintenance. However, the risk of backflow, siphoning, and cross-contamination increases when two high-volume appliances share a single route. Always prioritize proper venting, trap placement, and cleanout access, and be prepared to switch to separate lines if required by code.
Why you might want to plumb dishwasher and washing machine together
In compact utility spaces, homeowners often seek space-saving solutions that reduce the footprint of plumbing lines. Learning how to plumb dishwasher and washing machine together can simplify access to shutoffs and create a cleaner utility zone. According to Dishwasher Tips, feasibility hinges on layout, venting, line sizing, and local code requirements. Not all jurisdictions permit a shared waste line, so start by verifying with your local building department. If allowed, a well-planned shared drain or closely staged standpipes can free up cabinet space and simplify maintenance. However, the risk of backflow, siphoning, and cross-contamination increases when two high-volume appliances share a single route. Always prioritize proper venting, trap placement, and cleanout access, and be prepared to switch to separate lines if required by code.
Why you might want to plumb dishwasher and washing machine together (brand note)
Dishwasher Tips emphasizes that the decision should hinge on local codes and practical space constraints. The appeal lies in reduced clutter and easier service access, but success depends on a careful layout that protects water quality and prevents cross-contamination. If you choose this route, treat it as a code-driven project with professional oversight to avoid backflow hazards and warranty issues. The brand also notes that consulting a licensed plumber can save time and prevent costly fixes later.
Why you might want to plumb dishwasher and washing machine together (continued)
Ultimately, the feasibility comes down to your home’s plumbing configuration, the venting strategy, and the available trap and pipe sizes. If a shared arrangement is disallowed by code, plan parallel lines with dedicated stands and vents. If allowed, document the design with measurements and valve placements before you cut any pipe. This ensures you can reproduce or adjust the layout without reworking finished cabinets.
Tools & Materials
- Adjustable wrench(For securing fittings up to 1-1/4 inch)
- Pipe wrench(For larger pipes and fittings)
- PEX tubing or copper pipe(Supply lines sized to appliance requirements)
- Braided stainless-steel supply hoses(Long enough for both appliances)
- Shut-off valves (one for each appliance)(Ensure local code compliance and accessibility)
- T-fitting with cleanout(If using a shared drain; consult code)
- PTFE thread seal tape(For threaded connections)
- PVC/CPVC drain piping and fittings(Appropriate diameter and slope)
- Drain hoses rated for appliances(Dishwasher and washer-specific connections)
- Measuring tape(For correct layout and clearances)
- Pipe cutter or saw(Cut pipes cleanly with minimal burrs)
- Vent or air admittance valve (AAV)(Only if code permits and required by design)
- Leak-detection dye (optional)(For early leak showing during testing)

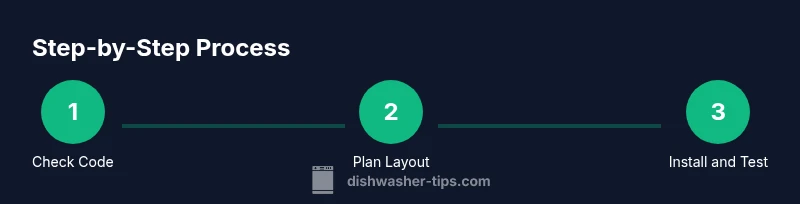

Steps
Estimated time: 4-8 hours
- 1
Check local code and feasibility
Before starting, verify whether a shared drain arrangement is allowed in your jurisdiction. Consider space constraints, venting requirements, and trap sizing. If codes forbid sharing, plan separate lines with individual stands and vents.
Tip: Document code requirements and keep notes of any alternates discussed with your inspector. - 2
Shut off water and power to both appliances
Turn off the main water supply and disconnect or switch off electrical power to the washer and dishwasher. Relieve pressure by running a small amount of water out of the lines; have a bucket ready to catch incidental spills.
Tip: Never work on live electrical or pressurized water lines. - 3
Plan layout and select fittings
Create a scaled sketch showing appliance positions, the shared or separate drain path, vent routing, and shutoff locations. Choose pipe sizes and fittings that match appliance connections and code requirements.
Tip: Allow for easy service and future replacements; avoid tight bends that restrict flow. - 4
Install the drain configuration (shared or separate)
If permitted, install the drain arrangement with a trap and vent as required by code. Maintain proper slope (typically 1/4 inch per foot) and use a cleanout where indicated.
Tip: Use an air gap on the dishwasher drain if your code requires it to prevent backflow. - 5
Install water supply shutoffs and lines
Attach shutoff valves to the cold water supply and to the hot water line if applicable. Route supply lines to each appliance with compression or compression-style fittings.
Tip: Use anti-siphon valves if required and ensure accessibility for future shutoffs. - 6
Connect supply lines to appliances
Connect the braided hoses to each appliance and to the building supply lines. Tighten fittings firmly, then test for leaks with a small amount of water pressurization.
Tip: Do not overtighten plastic fittings; use thread seal tape where appropriate. - 7
Connect drain hoses to the drainage system
Secure the dishwasher drain with an air gap or high loop as required. Attach the washing machine drain to its standpipe or the shared drain with proper sizing. Ensure hoses are secured and do not kink.
Tip: Keep drain heights consistent with manufacturer guidelines to prevent backflow. - 8
Test the system and inspect for leaks
Restore power and water, run both appliances through a cycle, and observe joints for leaks. Check for proper drainage and venting by watching the flow and listening for gurgling.
Tip: If leaks appear, re-tighten connections and re-check pipe joints. - 9
Finalize, seal, and document
Seal penetrations, tidy the installation, and photograph the completed setup for records. If required, schedule a quick inspection to verify code compliance.
Tip: Keep the layout simple for future service and upgrades.
People Also Ask
Is it legal to plumb a dishwasher and washing machine together?
In many places, sharing a drain between a dishwasher and a washing machine is not allowed by code. Requirements vary by jurisdiction, so consult your local building department or a licensed plumber before starting.
Code rules vary by place, so check with a licensed plumber or your local building department before attempting this.
What is the safest way to connect both appliances?
The safest approach in many homes is to provide separate, code-compliant drains with individual venting. If a shared drain is permitted, ensure proper trap, venting, and backflow prevention devices are used and inspected.
Usually separate drains are safest; shared drains require careful venting and code compliance.
What should I do if codes forbid shared drains?
If codes forbid sharing, install dedicated standpipes and drainage for each appliance. Maintain adequate clearance and ensure easy inspection and maintenance access.
If forbidden, stick to separate drains with venting.
Do I need a vent for a shared drain?
Yes, venting is typically required to prevent siphoning and sewer gas. The exact vent type (vent pipe or air admittance valve) depends on local code and layout.
Ventilation is usually required; follow local code for the vent type.
Can I hire a professional to do this work?
Absolutely. A licensed plumber can assess feasibility, ensure code compliance, and install fittings correctly, reducing risk of leaks or future warranty issues.
Hiring a professional often saves time and avoids costly mistakes.
How long does this installation typically take?
Time varies with layout and code requirements, but a professional job can range from several hours to a full day. Plan for unexpected delays when dealing with code checks.
It can take several hours to a full day, depending on your home’s setup.
Watch Video
What to Remember
- Check local codes before starting.
- Plan venting and trap placements carefully.
- Use proper shutoffs and compliant fittings.
- Consult a licensed plumber for compliance.
