What hookups are needed for a dishwasher: A complete guide
Discover the essential hookups required for dishwasher installation, including water supply, drainage, power, and fittings. Practical steps, safety tips, and code considerations for DIYers and homeowners.
To hook up a dishwasher correctly, you’ll need a cold-water supply, a drainage connection, and a dedicated electrical circuit. Prepare a secure under-sink shutoff valve, a high loop or air gap for the drain, and compatible hoses and fittings. Ensure the electrical outlet matches the dishwasher plug, or use a hard-wired kit if required by code. According to Dishwasher Tips, proper hookups prevent leaks and extend appliance life.
Water supply essentials
For homeowners asking what hookups are needed for dishwasher, the cold-water connection is essential to provide water for washing and rinsing. The supply line typically travels from a home shutoff valve to the dishwasher’s inlet hose. Use a dedicated shutoff valve that remains accessible for maintenance and emergencies. Flexible braided hoses are common for ease of routing, but always verify compatibility with your model’s inlet fitting and avoid cross-threading seals. Keeping the supply line short and straight minimizes the risk of kinks and leaks while ensuring adequate water flow for the wash cycle.
Drainage and venting basics
A proper drainage arrangement prevents backflow and leaks. The dishwasher drain hose should connect to a standpipe, a sink drain with an air gap, or a disposer knockout, depending on your kitchen configuration. In many codes, an air gap or an approved high-loop is required to prevent backflow into the dishwasher. Secure the hose with clamps and avoid sharp bends. Check that the drain line has a clear path to the household drain, and that there’s no siphon risk during cycles.
Electrical readiness and safety
Dishwashers require a dedicated electrical circuit. Do not use extension cords or shared circuits, and ensure the outlet remains accessible. If your model is plug-in, use a grounded, GFCI-protected receptacle as required by kitchen code. If your unit must be hard-wired, follow the manufacturer’s wiring diagram and install a proper junction box with strain relief. Always turn off power at the breaker before starting any wiring work and verify zero voltage with a tester before touching conductors.
Hose routing, sizing, and securing
Route inlet and drain hoses to avoid contact with sharp edges or hot surfaces. Use clamps to secure hoses at both ends and prevent movement during cycles. Keep hoses away from doors or drawers that could snag them, and avoid long, sagging runs that create slow drainage or kinks. If your installation kit includes specialty fittings, follow the manufacturer’s instructions to ensure leak-free seals and proper hose alignment.
Planning and readiness before install
Before starting, confirm space clearances inside the cabinet and behind the dishwasher, prepare your tools, and verify you have all required parts and fittings. Review the dishwasher’s installation manual for any model-specific requirements, such as minimum height, clearance, or venting needs. Having a checklist helps you stay organized, reduces trips to the hardware store, and minimizes downtime during the actual hookup.
Tools & Materials
- Adjustable wrench(For tightening fittings and hose clamps)
- Phillips screwdriver(To secure brackets and mounting screws)
- Flathead screwdriver(Optional for certain clips)
- Teflon tape(Wrap threads on water supply connections)
- Bucket(Catch residual water during connections)
- Dishwasher installation kit (inlet hose, drain hose, fittings)(If not included with unit)
- Measuring tape(Check space and alignment)
- Electric voltage tester(Ensure power is off before wiring)
- Utility knife(For trimming hoses or packaging)
- Silicone sealant or plumber's compound(For extra sealing where needed)

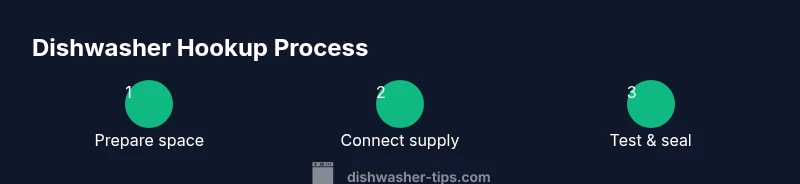

Steps
Estimated time: 60-90 minutes
- 1
Confirm space and clearances
Measure the cabinet cavity and doorway path to ensure the dishwasher fits and there’s room for hookups. Check that there’s a nearby water shutoff, a receptacle, and a clear drain route. This upfront check prevents fit issues later in the installation.
Tip: Have a tape measure handy and mark any obstacles that could block hoses or doors. - 2
Shut off water and power
At the water shutoff valve and the home’s circuit breaker, cut off water and electricity to the area. Remove any standing water in the cabinet to keep the workspace dry. Never work on live wiring or pressurized lines.
Tip: Test for zero voltage with a tester before touching wires. - 3
Prepare drain routing and install air gap/loop
Position the dishwasher drain hose to reach the sink drain or disposer knockout, using an air gap where required by code or manufacturer recommendations. Secure the hose with a clamp to prevent backflow or leaks during cycles.
Tip: Avoid creating a sharp elbow or kinks in the hose. - 4
Connect water supply line
Attach the inlet hose to the water shutoff valve using proper fittings and sealant as needed. Connect the other end to the dishwasher inlet, ensuring a snug, leak-free connection. Replace any old hoses if you notice cracks or bulges.
Tip: Tighten fittings gradually—over-tightening can damage seals. - 5
Make electrical connection
If plug-in, insert the power cord into a grounded kitchen receptacle. If hard-wired, follow the wiring diagram and secure connections in a proper junction box. Ensure there’s strain relief and no exposed conductors.
Tip: Never modify the appliance cord or bypass ground connections. - 6
Test run and inspect for leaks
Power the unit and run a short wash cycle with the cabinet door closed. Look for drips at all connections and verify the drain clears smoothly. If a leak appears, power down and re-check fittings before running again.
Tip: Have towels ready and monitor for the first 5-10 minutes of operation.
People Also Ask
Do dishwashers require a dedicated circuit?
Yes. Kitchens typically require a dedicated circuit for dishwashers, and local codes may require GFCI protection. Always follow the manufacturer’s instructions and code requirements.
Yes. Dishwashers should be on a dedicated circuit per code and the manufacturer’s instructions.
Is an air gap required for all installations?
Air gaps are required by many codes, especially in new construction. If not required, you can use a high-loop to prevent backflow into the dishwasher.
Air gaps are often required by code; otherwise, a high-loop can be used.
Can I reuse old hoses?
It’s best to replace hoses with a new installation kit to avoid cracks and leaks. Inspect old hoses for bulges, cracks, or corrosion.
It's safer to replace hoses with a new kit if you’re unsure about their condition.
Is it OK to use an extension cord?
No. Extension cords present a fire risk and are not permitted for dishwashers in most codes.
No extension cords—dishwashers require a dedicated, grounded outlet.
What’s the best place for the drain hose?
Run the drain hose to a sink drain or disposer per code and ensure the hose has a secure high loop or air gap to prevent backflow.
Place the drain hose with a high loop or air gap to prevent backflow.
What tools will I need?
Common tools include wrenches, screwdrivers, measuring tape, and a voltage tester. The exact tools depend on your model and the kit.
You’ll typically need basic hand tools and a voltage tester for safety.
Watch Video
What to Remember
- Confirm space and access before starting
- Use a dedicated water supply and drainage path
- Do not reuse damaged hoses; replace with new kit
- Power off before any electrical work
- Run a test cycle and check for leaks
