This guide helps you fix a dishwasher heating element by diagnosing the fault, testing with a digital multimeter, and replacing the element if necessary. You’ll need basic tools, a replacement heater element, silicone grease, and safety gear. Follow step-by-step instructions, safety warnings, and troubleshooting tips to complete the repair confidently—whether you DIY or hire a pro for the final install.
How a dishwasher heating element works
The heating element is a metal coil or ribbon located at the bottom of the dishwasher tub. When the control board energizes the element, it heats water and air to the temperatures required for wash and dry cycles. The element operates in cooperation with the thermostat and a thermal fuse to prevent overheating. In most dishwashers, a dedicated relay or solid‑state switch powers the element only during specific cycle phases. Understanding this flow helps you diagnose why a unit isn’t heating properly and which components may be involved in a failure.
Common failure modes and symptoms
A failing heating element often presents as a dishwasher that won’t heat water, resulting in extended wash times and poor drying. You might see error codes from the control panel indicating a heater fault or temperature sensor issue. Mineral buildup from hard water can insulate the element and reduce efficiency, while a faulty thermostat or thermal fuse may cut power to the element altogether. Recognize symptom patterns to guide your repair path and avoid unnecessary part replacements.
Safety prerequisites before you start
Safety comes first. Unplug the dishwasher and switch off the dedicated circuit at the breaker before any work. Shut off the water supply to prevent leaks, and have towels or a bucket ready for spills. Remove the lower rack and any kick panels to gain clear access to the heater area. If your model uses a hidden access panel, consult the user manual to avoid damaging brackets or seals. Wearing insulated gloves adds a layer of protection when handling metal parts.
Safe, quick diagnostic checks you can perform
Begin with non‑invasive checks to avoid electrical hazards. Confirm there is power at the control board when the heater is expected to engage, and inspect the door latch, float switch, and wiring harness for sticking parts or corrosion. Look for obvious signs of damage such as melted insulation or burnt connectors. Do not probe exposed coils while the unit is plugged in, and use insulated tools. These checks can save time and prevent shocks.
How to test the heating element with a multimeter
First, disconnect power and access the element terminals. Set your multimeter to continuity or the resistance setting, and measure between the element’s terminals. A healthy element shows a finite resistance value within the manufacturer’s range; infinite resistance or a wildly fluctuating reading signals a failed element. Inspect the wire leads for corrosion and ensure the connectors are tight and clean. If in doubt, pause the repair and seek professional guidance.
Replacement considerations and installation basics
If testing confirms a failed element, choose a replacement that is compatible with your model (check the dishwasher’s model number and part availability). Inspect the gasket and mounting brackets; replace worn fasteners and, if recommended, apply dielectric grease to terminals. Reinstall the element carefully, reconnect wires to the same terminals, and ensure there are no loose connections. Restore power and run a short cycle to check heat and look for leaks. Refer to the manual for torque specs and safety notes.
Maintenance and prevention tips to extend life
Regular maintenance can prevent premature failure. Clean the filter and inspect the heater area for mineral buildup, especially in areas with hard water. Use the recommended detergent and rinse aid, and avoid overloading which can force the heater to work harder. If you have hard water, consider a descaling routine every few months. Proper maintenance keeps the heating element efficient and extends its service life.
Tools & Materials
- Replacement heating element compatible with your model(Model-specific part number match is essential)
- Digital multimeter(For continuity/resistance testing)
- Insulated screwdrivers and nut drivers(Phillips and flathead as needed)
- Needle-nose pliers and wire labels(Label wires before disconnecting)
- Gasket kit or replacement seals(Keep as needed for leaks)
- Dielectric grease (silicone-based)(Only if manufacturer approves)
- Towels or absorbent rags(Contain spills during work)
- Gloves and eye protection(Electrical and sharp-edge safety)
- Bucket(For catching residual water)
- Manual or model-specific wiring diagram(Helpful for precise wiring)
- Flashlight or headlamp(Improve visibility inside the unit)

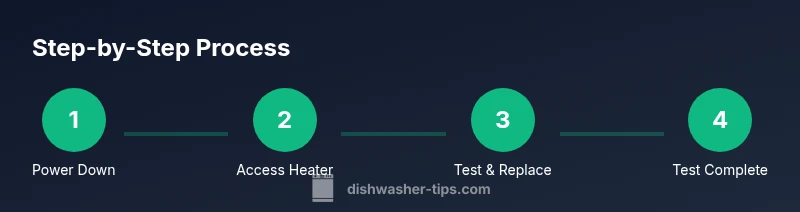

Steps
Estimated time: 60-90 minutes
- 1
Power down and access
Unplug the dishwasher and switch off the dedicated circuit at the breaker. Remove the lower rack and any panels needed to reach the heater chamber.
Tip: Double-check no power is present with a tester before touching wires. - 2
Label and disconnect wiring
Take clear photos and label each wire connector before loosening any screws. Use insulated tools and keep fasteners organized.
Tip: A photo log prevents mis-wiring during reassembly. - 3
Remove the old heating element
Loosen mounting screws or brackets and gently extract the element from its seal. Watch for mineral deposits and damaged gaskets.
Tip: Inspect the surrounding area for corrosion and replace gaskets if cracked. - 4
Verify compatibility
Check the model number and confirm the new element matches the old part. Confirm mounting hole alignment and electrical ratings.
Tip: Keep the old part handy for quick comparison. - 5
Install the new element
Place the replacement element in the same orientation, secure mounting hardware, and reconnect the wires to the same terminals.
Tip: Apply dielectric grease only if your manufacturer recommends it. - 6
Restore power and test
Reconnect power and run a short test cycle with no dishes to verify heat and inspect for leaks or unusual noises.
Tip: Stop the test if you detect burning smells or smoke. - 7
Full test and cleanup
Run a full cycle and monitor heat, dryness, and any error codes. Reassemble panels and racks, then clean the workspace.
Tip: Document results and keep the repair log for future reference. - 8
Evaluate next steps
If heat remains inconsistent, reassess other components (thermostat, control board) or contact a pro for advanced diagnostics.
Tip: Some issues sit beyond a simple heater replacement.
People Also Ask
What are the signs of a bad dishwasher heating element?
Common signs include no heat, longer wash times, and dry cycles that fail to dry dishes. Error codes may point to heater problems. Visual inspection for burned coils or corrosion also helps identify failure.
If your dishwasher isn’t heating, look for no heat, longer cycles, or drying failures; check codes and coils.
Can I test the heating element with a multimeter while it’s installed?
It’s safer to disconnect power and access the element terminals. You can test continuity and resistance with a multimeter after removal; avoid live testing.
Power off and access the element before testing for accuracy and safety.
Is replacing a dishwasher heating element a DIY-friendly task?
Moderate difficulty. Basic electrical skills and following the manufacturer’s guidance make it doable. If you’re unsure, hire a pro to prevent leaks or wiring mistakes.
It’s doable if you’re comfortable with wiring; otherwise, get a professional.
How long does a heating element replacement typically take?
Most DIY repairs take about 60 to 90 minutes, depending on model access and gasket condition. Allow extra time if you need to replace seals or brackets.
Most people finish in an hour or so, depending on access.
Are there warranty considerations I should know?
Part warranties typically cover the heating element itself. Check your model and retailer terms; if the unit is under warranty, contact the manufacturer for service options.
Check part warranty terms and your unit’s warranty status.
What if the new element doesn’t heat after installation?
Re-check all connections, ensure the control board and thermostat are functioning, and test for power at the element terminals. If the issue persists, consult a professional.
Double-check wiring and control components; seek help if heat still won’t come on.
Watch Video
What to Remember
- Unplug and test before replacement.
- Choose a compatible element to ensure fit and safety.
- Safety first: follow labeling and use insulated tools.
- Test heat with a cycle to verify proper operation.
- Consider pro help for complex electrical issues.
