How to Check Dishwasher Heating Element
Learn how to check dishwasher heating element for proper heat and drying. This practical guide from Dishwasher Tips covers safety, visual inspection, electrical testing, common faults, and maintenance tips to diagnose and fix heat issues.
This guide shows how to check dishwasher heating element for proper heat and drying. You’ll inspect the element, test continuity with a multimeter, verify wiring and grounding, and rule out controller or cycle issues. Follow safety precautions and use the step-by-step actions to complete the check confidently in under an hour.
Why the Heating Element Matters for Cleaning and Drying
The heating element is the core component that drives high-temperature heat during the wash and dry phases. It powers the hot water heater and the air heater used in the drying cycle, helping to reduce moisture and improve sanitizer performance. If the element malfunctions, you may see longer cycles, dishes that feel warm but not dry, or residual moisture after the cycle completes. Understanding how to check dishwasher heating element helps homeowners diagnose heat problems quickly and safely. According to Dishwasher Tips, many heat-related issues trace back to mineral buildup, loose terminals, or degraded insulation around the element. A failing element can produce intermittent heat, or fail completely, triggering cycle errors or damp dishes. The heating element is typically located either at the bottom of the tub or behind a small service panel, depending on the model. Access usually requires unplugging the machine and removing the toe-kick or service cover following the manufacturer’s instructions. When preparing to inspect, gather the right tools, wear gloves, and keep a dry workspace. This section lays the groundwork for a safe, methodical check that pinpoints heat problems without turning the repair into a guess.
How the Heating Element Is Built and Where It Lives
In most dishwashers, the heating element is a resistive coil or a sealed cartridge connected to two terminals. It sits near the bottom of the tub and may extend under the sump or along the back wall, depending on design. The element heats water as it flows through the heater assembly and then uses warm air during drying. Over time, mineral buildup from hard water, corrosion at the terminals, or loose wiring can reduce performance or cause a short. If the element is damaged or lacks a solid ground, you may notice inconsistent heat or a burnt smell during operation. Modern dishwashers may integrate a temperature sensor or thermostat that communicates with the control board; a fault in this sensor can masquerade as a heating element issue. Regular maintenance—like cleaning seals, removing debris from the filter, and testing the wiring during routine service—helps extend life and reduces unexpected failures. The Dishwasher Tips team emphasizes proactive checks as a way to avoid costly repairs later.
Common Causes of Heating Element Failure
Several factors contribute to heating element failure. Mineral buildup and corrosion around terminals are common, especially in hard-water areas, and can cause poor contact or shorting. Loose or damaged wiring, degraded insulation, and faulty thermostats or thermal fuses can also prevent the element from heating properly. An element may still show some heat while cycling, yet fail to reach the target temperature, indicating a partial fault. In some cases, the control board or cycling sensors send incorrect signals, making the element appear faulty when the issue lies upstream. Based on Dishwasher Tips analysis, mineral buildup and loose connections are frequent culprits, followed by failing thermostats and compromised grounding. If you notice an error code related to heating or a persistent failure to dry, consider inspecting both the element and the related control components. Plan for replacement if signs of damage are evident or if testing confirms an open circuit.
Safety First: Prep and Safety Guidelines
Before touching any dishwasher components, power down completely. Unplug the unit or switch off the circuit breaker and confirm there is no residual power. Wear insulated gloves and use dry, non-conductive tools. Work in a dry environment, and place towels or a shallow tray to catch any remaining water. Never reach into electrical connections with wet hands or metal tools that could bridge live terminals. If you are uncomfortable with electrical testing, stop and consult a professional. This safety-first approach protects you and preserves equipment safety while you perform visual inspection and measurements.
Step-by-Step Diagnosis: How to Check Without Special Tools (High-Level Overview)
This overview introduces the sequence you’ll follow in the detailed Step-by-Step section. Start by verifying power is disconnected and gaining access to the heater area. Visually inspect terminals for corrosion, melted insulation, or loose wires. Then perform a resistance test with a multimeter across the two heater terminals; a continuous circuit generally indicates the element is intact, while an open or short suggests damage. Check for proper grounding by testing continuity between the heater body and the appliance chassis. Finally, reassemble and run a test cycle to observe heat generation. For models with an upstream thermostat or thermal fuse, ensure those components are also checked, as they can masquerade as heater faults. This section lays the groundwork for precise testing and safe handling.
What to Do If the Heating Element Is Faulty
If testing reveals an open circuit, visible damage to the element, or poor continuity, replacement is usually the most reliable option. Begin by disconnecting power, removing the old element, and selecting an exact replacement compatible with your model. If you are unsure about the wiring or mounting, consider professional installation. Some elements are designed for easy replacement in specific models, while others require more disassembly. After replacement, reassemble all panels, reconnect power, and run a short cycle with no dishes to confirm heat and drying are performing correctly. The Dishwasher Tips team recommends using OEM or manufacturer-approved parts when possible to maintain safety and performance. If you’re comfortable with basic electrical work, document wire colors and connections before disassembly to ease reassembly.
Maintenance to Extend Element Life and Safeguard Performance
Proactive maintenance can prolong heating element life and reduce failures. Regularly clean the filters and sump to prevent mineral buildup that can cause heating inefficiency. Inspect terminal blocks for corrosion and tighten connections where appropriate. Use a descaling routine if your water is hard; this can minimize mineral deposition on the element. Keep the area around the element dry during inspections and avoid forcing connectors apart with excessive force. Consider using a rinse aid and water softening approaches as part of a broader maintenance plan. The Dishwasher Tips team notes that consistent maintenance reduces the likelihood of unexpected heat failures and extends appliance life.
Authoritative Sources and Further Reading
For additional technical details and official guidance, refer to reputable sources on appliance energy and safety standards. You’ll find in-depth information about dishwasher heating elements, safety practices, and replacement guidelines from government and education/public institutions. See the following references for broader context and best practices.
Conclusion: A Practical Path Forward
By following these steps, you’ll gain a clear understanding of your dishwasher’s heating element health and what actions to take next. The process emphasizes safety, careful inspection, and methodical testing to avoid guesswork. If the element is faulty, replacement is often straightforward with model-appropriate parts; if you’re unsure, professional help ensures correct wiring and secure mounting. The Dishwasher Tips team recommends documenting every step during testing and reassembly to ensure you can reproduce results in the future. With careful adherence to safety and testing practices, you can restore reliable heat and drying performance and extend the life of your dishwasher.
Tools & Materials
- Multimeter (continuity/ohms)(Auto-ranging preferred; test across heater terminals and check for continuity)
- Screwdriver set (Phillips and flathead)(To remove access panels and terminal covers)
- Safety gloves(Insulated gloves for electrical work)
- Non-slip mat or towels(Absorb water and prevent slipping during panel removal)
- Flashlight or headlamp(Illumination for tight spaces and terminal areas)
- Bucket or shallow tray(Catch residual water when panels are opened)
- Camera or notebook(Document wiring before disassembly and reassembly)

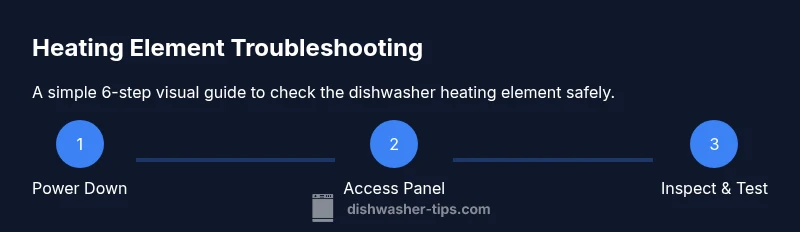

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Unplug the dishwasher or switch off the circuit breaker. Confirm there is no residual power by attempting a quick cycle without water or by testing a nearby outlet with a non-contact tester. This ensures you won’t receive an electric shock during disassembly.
Tip: Double-check the model’s manual for any special safety warnings before removing panels. - 2
Gain access to the heating element
Remove the toe-kick panel or service panel as required by your model. If the element is behind a sump cover, carefully detach that panel too. Keep all screws organized so you can reassemble easily.
Tip: Take photos of each step and label connectors to avoid miswiring during reassembly. - 3
Do a visual inspection of the element area
Look for burnt or melted insulation, visible corrosion on terminals, frayed wires, or loose connector blocks. Any obvious damage or discolored components indicate a fault that may require replacement. Do not force connectors or pry components that look firmly attached.
Tip: Use a flashlight to illuminate hard-to-see spots and check the backside of terminal blocks. - 4
Test resistance across heater terminals
With the unit unplugged, disconnect the two heater terminals. Set the multimeter to resistance/continuity and measure across the terminals. A continuous circuit suggests the coil is intact; a high-impedance or open reading points to a failed element.
Tip: If the reading seems ambiguous, test a known good heating element from another appliance for comparison. - 5
Check grounding and related wiring
Inspect the grounding path from the heater to the chassis. Look for damaged insulation, exposed conductors, or a loose ground connection. A poor ground can prevent heating even when the element itself is good.
Tip: Ensure any ground strap is securely fastened and that the chassis isn’t carrying stray voltage during testing. - 6
Reconnect, reassemble, and run a test
Reconnect all terminals exactly as they were, reattach panels, and power the machine. Run a short cycle with no dishes to verify heat generation and drying. If the unit still fails to heat, replacement may be required or professional service should be sought.
Tip: Label wires and use the photos you took to ensure precise reconnection.
People Also Ask
What are the signs that the heating element is failing?
Common signs include dishes remaining wet after a cycle, poor or no heat during wash, unusual smells, and longer cycle times. If you notice any of these, inspect the heating element and related components before deciding on replacement.
Common signs include wet dishes after a cycle and weak heat; inspect the element and related parts before replacing.
Can I test the heating element without removing it from the dishwasher?
Some models allow basic checks from outside, but most reliable tests require access behind panels to measure resistance and check connections. Always follow the manufacturer’s guidance.
Some models let you test from outside, but most tests need access behind panels.
Is it safe to replace the heating element myself?
Replacement is possible for homeowners with electrical experience and model-specific guidance. If you are unsure, hire a technician to avoid electrical or water damage.
Only attempt if you’re comfortable with electrical work; otherwise hire a professional.
What tools do I need for testing?
You’ll need a multimeter, screwdriver, insulated gloves, towels, and a flashlight. Keep a camera handy to document wiring before disassembly.
A multimeter, screwdriver, gloves, towels, and a flashlight are essential.
Why do heating elements fail in dishwashers?
Failures often stem from mineral buildup, corrosion at terminals, loose wiring, or failed thermal fuses. Faults in related control components can also mimic heater issues.
Mineral buildup, corrosion, and loose wiring are common causes.
How long does a heating element replacement take?
Replacement time varies by model but typically ranges from 1 to 2 hours for a DIY job, plus any waiting time for parts or professional scheduling.
Usually about 1 to 2 hours for DIY, depending on your model.
Watch Video
What to Remember
- Power down before any inspection.
- Inspect visually for damage and test with a meter.
- Differentiate heater faults from control board issues.
- Replace faulty elements with model-compatible parts.
- Regular maintenance reduces future heat problems.
